U5100 NTK Ignition Coil 48297

Get U5100 NTK Ignition Coil 48297 in Kenya

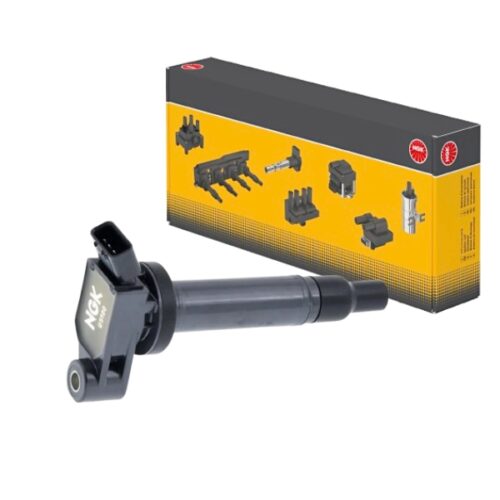

The NTK Ignition Coil U5100 (Part Number 48297) is a precision-engineered, high-performance ignition component designed to deliver consistent and reliable spark energy in today’s modern engines. As part of the ignition system, the ignition coil’s function is critical: it converts the vehicle’s low-voltage (12V) battery current into a high-voltage pulse strong enough to ignite the air-fuel mixture inside each combustion chamber. The U5100 is specially built for coil-on-plug (COP) systems, offering superior performance, excellent energy efficiency, and unmatched durability across a wide range of vehicle operating conditions.

Whether used as a replacement coil for preventive maintenance or to address engine performance issues such as misfires or starting problems, the NTK U5100 stands as a trusted solution. It’s designed to meet or exceed OE specifications and is crafted using premium-grade materials for extended service life, even under harsh engine bay environments.

Purpose and Working Principle

Ignition coils like the U5100 operate on the principle of electromagnetic induction. Within the coil are two wire windings: the primary winding, which receives low-voltage current from the battery, and the secondary winding, where the voltage is stepped up to create a high-voltage charge. The coil’s ferrite core stores energy during the charging phase, and when the primary circuit is interrupted, the magnetic field collapses rapidly, producing a surge of high voltage—often ranging from 20,000 to over 40,000 volts. This pulse is directed to the spark plug to ignite the air-fuel mixture in the cylinder.

The U5100 is built specifically for coil-on-plug (COP) systems, where each ignition coil is installed directly above a spark plug. This eliminates spark plug wires, reduces energy losses, and improves spark accuracy and reliability.

Construction Quality and Materials

The NTK U5100 ignition coil is constructed from advanced materials designed to deliver long-lasting performance, exceptional voltage handling, and strong resistance to heat and vibration.

Key Construction Features:

• Precision-Wound Copper Wire: High-conductivity copper wire in both the primary and secondary windings ensures efficient energy transfer, fast voltage buildup, and minimal resistance.

• High-Permeability Ferrite Core: The laminated core material supports strong magnetic fields, allowing for rapid energy storage and release with minimal loss.

• Epoxy Resin Encapsulation: The windings and core are fully encased in high-dielectric epoxy resin, which offers insulation, shock absorption, and moisture resistance to protect internal components from environmental damage.

• Thermally Resistant Polymer Housing: The outer shell is made from heat-stable, vibration-resistant polymers that withstand the extreme conditions present in the engine compartment.

• Precision Molded Connector: The terminal housing is engineered to provide a secure, OE-style electrical connection, maintaining signal integrity and electrical continuity.

Performance Highlights

The U5100 is designed to support consistent engine operation across a wide range of driving scenarios, from low-RPM idling to high-speed acceleration. Its high-voltage output and fast response time make it suitable for engines that require quick spark timing and precise combustion control.

Performance Advantages:

• High Spark Voltage: Capable of producing strong and stable high-voltage output, ensuring complete combustion of the air-fuel mixture even under demanding conditions.

• Rapid Charging/Discharging: Optimized windings and coil geometry enable fast energy buildup and discharge, ensuring accurate spark timing.

• Enhanced Cold Start Capability: Maintains spark strength during cold starts, reducing engine strain and helping fuel ignite more efficiently in low temperatures.

• Stable Engine Idling: Delivers a consistent spark signal at low RPMs, reducing engine shake and ensuring smooth idle performance.

• Reduced Misfires: Provides dependable ignition across all cylinders, minimizing misfires and improving overall engine reliability.

• Support for Emission Control: With complete and clean combustion, the U5100 helps lower tailpipe emissions and improve oxygen sensor and catalytic converter performance.

Durability and Environmental Resistance

The NTK U5100 is engineered to withstand the intense thermal and mechanical stress found in modern engine compartments. Its materials and design help protect against breakdown caused by environmental exposure, vibration, and thermal cycling.

Durability Features:

• Thermal Endurance: Designed to operate within extreme temperature ranges, the coil maintains stability even during extended high-load operation or in stop-and-go traffic.

• Vibration Resistance: The encapsulated internal structure and rugged outer housing allow the coil to resist mechanical fatigue from road vibrations and engine motion.

• Contaminant Shielding: Sealed housing and epoxy-filled internals block dust, moisture, fuel vapors, and engine oil from penetrating sensitive coil components.

• Corrosion Protection: Corrosion-resistant terminal materials and connector seals ensure longevity and electrical consistency over years of operation.

Installation and Compatibility

One of the standout features of the U5100 is its compatibility with a variety of vehicle platforms and its ease of installation. Designed to mirror OE specifications, it can be installed quickly without the need for special tools or modifications.

Installation Features:

• Direct OE Fitment: All dimensions and mounting points are matched to original specifications, allowing for a seamless bolt-on installation.

• OE-Matching Connector Plug: Ensures a snug and secure fit with factory wiring, maintaining stable electrical communication between the ignition system and the engine control unit (ECU).

• Simplified Maintenance: Coil-on-plug systems, like those used with the U5100, make it easy to replace one coil at a time without removing additional parts, reducing service time and labor costs.

When to Replace an Ignition Coil

Over time, ignition coils can degrade due to heat, internal arcing, or insulation failure. It’s important to recognize the symptoms of a failing coil to prevent engine damage or performance loss.

Common Signs of Coil Failure:

• Check Engine Light (CEL)

• Engine Misfires

• Rough Idling

• Poor Acceleration

• Hard Starting or No Start

• Increased Fuel Consumption

• Unusual Engine Vibrations or Noises

Prompt coil replacement helps restore performance and prevents unburned fuel from damaging the catalytic converter or oxygen sensors.

Environmental Efficiency and Engine Health

In addition to its functional role in combustion, the U5100 supports overall engine health and environmental performance.

• Improved Fuel Efficiency: Complete combustion leads to less wasted fuel, maximizing miles per liter and reducing operational costs.

• Lower Emissions: Consistent ignition prevents unburned hydrocarbons and reduces harmful emissions, helping meet environmental standards.

• Reduced Engine Deposits: Complete combustion reduces carbon buildup on spark plugs and valves, extending engine life and reducing maintenance needs.

• Enhanced System Longevity: Stable operation of the ignition system prevents stress on related components like spark plugs, injectors, and emission sensors.

Manufacturing Standards and Testing

Each NTK U5100 ignition coil undergoes a rigorous series of tests to ensure superior quality and performance. These tests replicate real-world conditions to ensure reliability under varying temperatures, electrical loads, and mechanical stresses.

Quality Control Measures:

• High-Voltage Output Testing

• Thermal Shock and Heat Cycling

• Vibration Resistance Testing

• Dielectric Strength Validation

• Connector Fit and Conductivity Tests

• Load and Response Time Analysis

These tests ensure that every U5100 ignition coil delivers the performance and durability customers expect from a premium component.
