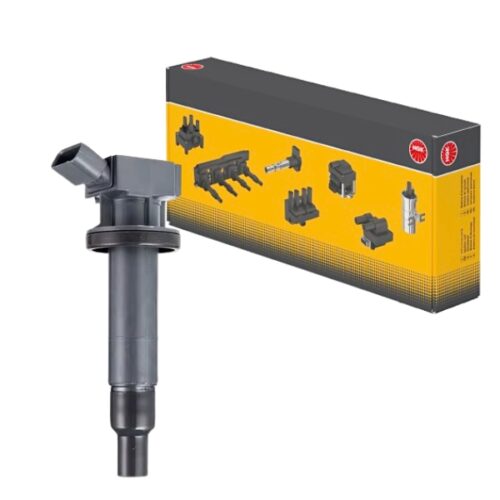

U5029 NTK Ignition Coil 48107

Get U5029 NTK Ignition Coil 48107 in Kenya

The ignition system plays a pivotal role in an engine’s performance, efficiency, and reliability. At the heart of this system is the ignition coil—a compact yet powerful component responsible for producing the high voltage needed to ignite the air-fuel mixture. The U5029 Ignition Coil, equivalent to part number 48107, is engineered for high output, extended durability, and exceptional performance under all operating conditions.

Designed using advanced materials and manufacturing precision, the U5029 ignition coil is a premium replacement part offering direct fitment and long-lasting reliability. It ensures smooth starts, consistent combustion, and reduced engine stress—making it an essential component for routine service or solving misfire issues.

Core Functionality

The function of an ignition coil is to take the vehicle’s 12-volt input and amplify it into tens of thousands of volts—enough to jump the gap between the spark plug’s electrodes and ignite the compressed fuel-air mixture inside the combustion chamber.

The U5029 is a coil-on-plug (COP) ignition coil, meaning each coil is mounted directly on top of a spark plug, eliminating the need for high-tension spark plug wires. This configuration improves energy transfer, reduces voltage loss, and enhances timing accuracy by removing intermediate connections between the coil and the spark plug.

Structural Design and Build Quality

The U5029 ignition coil is manufactured with close attention to materials, insulation, and circuit design. Every component is optimized for thermal stability, electrical reliability, and ease of installation.

1. Windings and Core Assembly

The coil consists of precision-wound copper wire that forms two winding circuits: the primary and the secondary. The primary winding receives 12V from the battery and builds a magnetic field. When the current is interrupted, this magnetic field collapses through the secondary winding, inducing a much higher voltage.

• Primary Winding: Constructed with low-resistance copper to optimize magnetic field generation.

• Secondary Winding: Designed for ultra-fine wire winding capable of producing over 30,000 volts per spark event.

2. Magnetic Core

The internal laminated iron core increases the magnetic flux density while minimizing energy loss. This results in faster charge and discharge cycles, which are critical for precise ignition timing and engine responsiveness.

3. High-Temperature Epoxy Potting

Inside the casing, the entire internal structure is sealed in a thermally stable epoxy resin. This protects the coil from thermal stress, engine vibration, and exposure to moisture or contaminants.

4. Heat-Resistant Thermoplastic Housing

The U5029 is encased in a molded thermoplastic shell that resists high engine temperatures, oil, and chemical exposure. This ensures the external integrity of the coil even after years of use.

5. Integrated Connector and Terminal Pins

A factory-style plug with precision-fit electrical terminals ensures perfect communication between the ignition system and the ECU. This guarantees accurate coil firing at all times.

6. High-Durability Silicone Boot

The silicone boot provides an excellent seal against spark plug contamination, preventing voltage leaks or flashovers. It also houses a high-tension spring that maintains continuous contact with the spark plug.

Performance Attributes

The U5029 ignition coil is a high-performance component designed to meet or exceed OE specifications in voltage output, efficiency, and durability. Key performance characteristics include:

• Rapid Voltage Climb Rate:
  Fast buildup and release of energy ensure cleaner, more powerful spark generation with each cycle.

• Consistent Spark Output:
  The coil maintains uniform output voltage over time, which is essential for consistent engine performance, especially under load.

• Wide Operating Temperature Range:
  Performs reliably from sub-zero temperatures to extreme heat—ideal for both cold starts and high-performance driving.

• Electromagnetic Shielding:
  Engineered to minimize EMI (electromagnetic interference), preventing disruption to nearby sensors or electronics.

• Minimal Energy Loss:
  High coil efficiency means less power is wasted as heat, leading to better fuel economy and reduced emissions.

Installation and Fitment

The U5029 ignition coil is designed for direct-fit replacement in engines using a coil-on-plug ignition setup. No modifications or special tools are needed for installation. Steps generally include:

1. Disconnecting the vehicle battery.

2. Removing the engine cover (if applicable).

3. Unplugging the coil’s electrical connector.

4. Removing the mounting bolt or clip holding the coil in place.

5. Extracting the old coil and inspecting the spark plug.

6. Installing the new U5029 coil, ensuring a firm seat over the spark plug.

7. Reattaching the bolt and reconnecting the electrical connector.

It’s advisable to test the engine for smoothness, misfire resolution, and check for diagnostic trouble codes (DTCs) after replacement.

Benefits and Advantages

The U5029 ignition coil offers a wide range of benefits for both daily drivers and high-performance applications:

• Improved Ignition Timing:
  Cleaner and faster spark delivery helps the ECU maintain precise timing for improved efficiency.

• Reduced Misfires:
  Eliminates stumbling, hesitation, and rough idling due to inadequate spark or coil degradation.

• Enhanced Engine Power:
  Maximizes combustion potential, unlocking hidden performance especially in engines with previous ignition issues.

• Fuel Economy Gains:
  Efficient combustion means less wasted fuel, which translates into lower fuel costs over time.

• Lower Emissions Output:
  Cleaner burns reduce unburnt hydrocarbon emissions, helping meet inspection standards and improving environmental impact.

• Longer Spark Plug Life:
  A stable, consistent voltage extends the life of the spark plug electrodes by reducing fouling or carbon buildup.

Signs of Coil Failure

Replacing a worn or faulty coil with the U5029 can resolve the following symptoms:

• Engine misfire or stutter during acceleration

• Difficult cold starts

• Illuminated check engine light (especially for misfire-related codes)

• Reduced throttle response or sluggish power delivery

• Noticeable drop in fuel economy

• Increased engine vibration, especially at idle

Maintenance Tips

To ensure maximum lifespan and performance from the ignition coil:

• Always replace spark plugs on schedule and use the correct gap.

• Keep the engine clean and free of oil or coolant leaks near ignition components.

• Avoid over-torquing coil mounting bolts to prevent casing cracks.

• Inspect boots and springs for corrosion or wear during routine service.

• Consider replacing all coils at once in high-mileage applications to avoid uneven performance.

Usage Scenarios

The U5029 ignition coil is ideal for:

• Periodic maintenance and part replacement

• Resolving ignition-related DTCs or misfires

• Improving cold start performance

• Preventative ignition system upgrades

• Supporting high-demand applications such as towing or spirited driving
