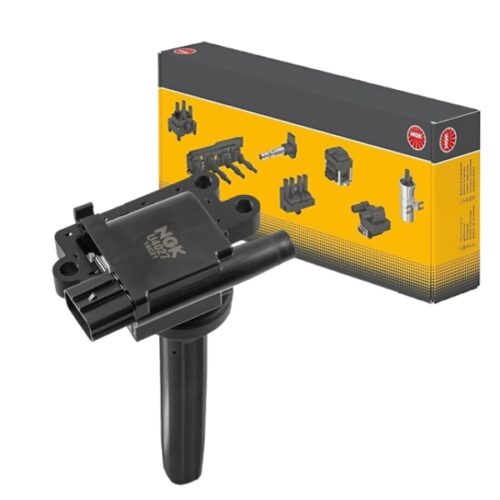

U4027 NTK Ignition Coil 48375

Get U4027 NTK Ignition Coil 48375 in Kenya

The NTK Ignition Coil 48375 is a precision-engineered ignition component designed to transform low-voltage electrical energy from a vehicle’s battery into the high-voltage spark required to ignite the air-fuel mixture in the combustion chamber. This process is essential for internal combustion engines to operate efficiently. Manufactured with advanced materials and stringent quality control, the NTK 48375 is ideal for modern engine applications requiring consistent ignition, minimal emissions, and optimal performance.

1. Purpose and Role in the Ignition System

The NTK Ignition Coil 48375 plays a central role in the ignition system, acting as a high-voltage transformer. It receives approximately 12 volts of electrical current from the vehicle’s battery and steps it up to tens of thousands of volts—typically between 20,000 and 40,000 volts. This sudden surge of energy is then transmitted to the spark plug, igniting the compressed air-fuel mixture within the combustion chamber. This precise and powerful ignition is critical to the operation of modern engines, particularly those with high compression ratios and electronically controlled ignition systems.

In vehicles using Coil-on-Plug (COP) technology, which eliminates the need for traditional spark plug wires, the NTK 48375 mounts directly above each spark plug. This layout minimizes energy loss, improves ignition timing accuracy, and simplifies installation and maintenance.

2. Construction and Material Composition

The NTK 48375 is built from premium-grade materials, ensuring durability, high-voltage tolerance, and resistance to harsh engine environments. Its construction includes several crucial elements:

a) Primary and Secondary Windings

• Primary winding: Typically consists of copper wire of optimal gauge, wound to facilitate the magnetic field buildup necessary for voltage induction.

• Secondary winding: Contains thousands of turns of fine copper wire, insulated and precisely wound to maximize voltage step-up capability.

b) Magnetic Core

The coil features a laminated iron or silicon steel core, specifically designed to concentrate and direct the magnetic field during coil charging. This enhances efficiency and voltage output while minimizing core saturation and heat buildup.

c) High-Performance Insulation

The windings are encapsulated in high-dielectric-strength epoxy resin. This prevents arcing, protects the windings from vibration and moisture, and ensures consistent performance over a wide range of temperatures and humidity levels.

d) Outer Casing

The housing is made of high-temperature-resistant, oil-resistant, and impact-resistant thermoplastic. This ensures the unit can endure the under-hood conditions of modern vehicles, including exposure to oil vapors, vibration, and high ambient temperatures.

3. Operating Principles

The NTK 48375 operates on the principle of electromagnetic induction. When the engine control unit (ECU) signals the coil to fire:

1. The primary winding is energized with low voltage, creating a magnetic field around the core.

2. This field collapses rapidly when the ECU cuts off the current, inducing a high-voltage surge in the secondary winding.

3. This high voltage travels directly to the spark plug, causing a spark to jump the electrode gap and ignite the air-fuel mixture.

This process happens in milliseconds and is repeated continuously for every combustion cycle of the engine.

4. Performance Attributes

The NTK Ignition Coil 48375 is engineered to meet the demands of high-performance engines and varying driving conditions. Its key performance attributes include:

• Rapid Voltage Response: Enables clean ignition even during cold starts or rapid throttle input.

• High Energy Output: Provides a robust spark under high-load conditions, supporting better combustion and acceleration.

• Thermal Stability: Performs consistently even under extreme engine bay temperatures.

• EMI Resistance: Designed with shielding and suppression materials to reduce electromagnetic interference (EMI) with other electronic systems.

5. Installation Features

The NTK 48375 features a compact, direct-fit design for easy installation in most coil-on-plug configurations. Installation does not require modifications, and it aligns securely with factory mounting points and electrical connectors.

Key installation guidelines:

• Ensure a clean mounting surface to prevent misfires due to poor grounding.

• Use dielectric grease in the boot for moisture protection and secure connection.

• Torque mounting bolts as specified to avoid overtightening or loosening during engine operation.

• Always replace or inspect spark plugs during coil installation for best results.

6. Durability and Longevity

Durability is one of the NTK 48375’s standout qualities. Designed to perform reliably over extended periods, the coil undergoes several tests to simulate long-term use and adverse conditions:

• Thermal shock testing to simulate extreme temperature changes.

• Vibration testing for structural integrity under engine movement.

• Moisture and salt spray testing to confirm corrosion resistance.

• Electrical endurance testing to replicate thousands of ignition cycles.

Under standard operating conditions and regular maintenance, the ignition coil can last well over 100,000 kilometers or more without degradation in performance.

7. Common Symptoms of Coil Wear or Failure

Despite its robustness, like all ignition components, the NTK 48375 can eventually wear out. Common signs of a failing ignition coil include:

• Engine misfires or hesitation during acceleration

• Difficulty starting or extended crank time

• Illuminated check engine light (often with cylinder misfire codes)

• Decreased fuel economy

• Rough idling or engine stalling

• Loss of power under load

Timely replacement helps prevent damage to other engine components, such as the catalytic converter, and maintains optimal fuel economy and emissions compliance.

8. Maintenance Tips for Extended Service Life

To prolong the life of the NTK 48375 and ensure peak performance:

• Regularly inspect ignition components during routine service intervals.

• Replace spark plugs on schedule to prevent coil overload.

• Avoid high-pressure water near the coil during engine cleaning.

• Keep connectors clean and corrosion-free, especially in high-humidity environments.

Also, it’s good practice to check the coil’s resistance using a multimeter if ignition issues arise, ensuring the readings are within manufacturer-specified limits.

9. Advantages of the NTK 48375

• OEM-Quality Performance: Designed to meet or exceed factory specifications.

• Consistent Spark Energy: Supports better throttle response, smooth idle, and improved combustion.

• Direct Replacement: Designed for easy installation without the need for adaptors or special tools.

• Superior Insulation and Sealing: Provides long-term reliability and resistance to external contaminants.

• Minimized Energy Loss: Coil-on-plug design reduces resistance and maximizes spark delivery efficiency.

10. Quality Assurance and Testing

NTK maintains high standards in the production of the 48375 ignition coil. Each unit is subjected to:

• High-voltage stress tests

• Impedance checks

• Leakage and arcing resistance validation

• Environmental simulations for temperature, vibration, and humidity

These quality checks ensure that only high-performing, defect-free coils reach the market.
