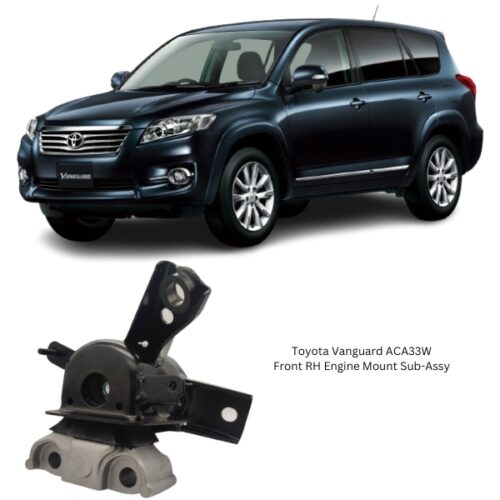

Toyota Vanguard ACA33W Front RH Engine Mount Sub-Assy 12305-0H050

Get Toyota Vanguard ACA33W Front RH Engine Mount Sub-Assy 12305-0H050 in Kenya

The Front RH Engine Mount Sub-Assembly is a fundamental component in a vehicle’s engine mounting system. Positioned at the front-right side of the engine bay, this mount plays a crucial role in maintaining engine alignment, absorbing vibrations, and ensuring structural integrity under dynamic driving conditions. It connects the engine to the vehicle’s chassis or subframe and functions both as a load-bearing support and a vibration isolator.

Modern engines generate a wide range of forces due to combustion, acceleration, deceleration, and shifting of gears. These forces, if not properly managed, can lead to discomfort, increased wear on engine components, and eventual failure of surrounding systems. The Front RH Engine Mount Sub-Assy is designed to resist these forces, absorb engine movement, and maintain powertrain stability.

Primary Functions

The Front RH Engine Mount Sub-Assy performs several vital functions to support the engine and drivetrain:

• Structural Support
  Supports the engine’s weight on the front-right side and keeps it securely fixed to the chassis.

• Vibration Isolation
  Damps engine-generated vibrations and prevents them from reaching the cabin, improving comfort.

• Torque Management
  Controls engine rocking and twisting due to torque, particularly during acceleration or gear shifting.

• Alignment Assurance
  Maintains proper engine alignment, which is critical for driveline accuracy and efficient power transmission.

• System Protection
  Reduces stress on auxiliary systems such as hoses, belts, wiring, and exhaust by limiting engine movement.

Together, these functions ensure that the engine remains properly positioned and operates quietly and efficiently under various driving conditions.

Design and Engineering

The Front RH Engine Mount Sub-Assy is engineered to meet the dual requirements of strength and flexibility. It must be rigid enough to hold the engine in place, yet elastic enough to absorb shocks and vibrations.

Key Components:

1. Outer Bracket or Housing
   Constructed from high-strength stamped steel, aluminum alloy, or cast iron, this component connects the mount to the engine block and vehicle frame.

2. Rubber or Elastomeric Insulator
   The core of the mount is a molded elastomer (usually natural rubber or polyurethane) designed to absorb vibrations and allow slight engine movement.

3. Center Sleeve or Bushing
   A metal tube or bushing is embedded in the rubber insulator and serves as a passage for the mounting bolt, anchoring the engine while allowing movement within a controlled range.

4. Hydraulic Chamber (if equipped)
   Some variants include a sealed hydraulic fluid chamber to offer superior damping, particularly for low-frequency vibrations.

5. Corrosion-Resistant Coating
   Anti-corrosive finishes, such as zinc plating or powder coating, protect the mount from rust and degradation caused by road salt, oil, or coolant exposure.

6. Heat Shield (optional)
   A thermal barrier may be included for applications near high-temperature components, like exhaust manifolds or turbochargers.

This multi-material design allows the mount to function efficiently in harsh under-hood environments while extending its service life.

Performance Characteristics

A properly functioning Front RH Engine Mount Sub-Assy delivers the following performance benefits:

• Stable Engine Support
  Maintains precise engine position under load, ensuring smooth vehicle operation.

• Superior Vibration Damping
  Minimizes noise, vibration, and harshness (NVH) experienced inside the vehicle.

• Durability and Fatigue Resistance
  Built to withstand repeated torsional and vertical loads without cracking or collapse.

• Thermal and Chemical Resistance
  Performs reliably despite prolonged exposure to high temperatures, oil, coolant, and other under-hood fluids.

• Safety Under Impact
  Helps prevent damage in the event of a minor collision or sudden deceleration by restricting uncontrolled engine movement.

The performance of this mount is integral to both comfort and mechanical integrity.

Signs of Failure

Over time, the Front RH Engine Mount Sub-Assy can wear out or fail due to age, environmental exposure, or mechanical stress. Recognizing the symptoms of a failing engine mount can prevent further damage.

Common Failure Symptoms:

1. Increased Engine Vibration
   A hardened or cracked insulator will transmit more engine vibrations to the cabin, especially noticeable at idle.

2. Engine Rocking or Shifting
   When accelerating or shifting gears, the engine may move excessively if the mount has failed.

3. Knocking or Clunking Sounds
   Impact noise during driving may result from the engine making contact with nearby components.

4. Visible Damage
   Cracked, split, or oil-soaked rubber, or signs of separation between rubber and metal, are clear indicators of failure.

5. Fluid Leaks (in hydraulic mounts)
   Hydraulic mounts that leak fluid have lost their damping capabilities.

6. Misalignment of Engine Accessories
   Sagging from a worn mount can misalign belts, hoses, and other engine systems, potentially causing further issues.

Timely identification and replacement are critical to maintaining engine performance and preventing costly repairs.

Installation Process

Installation of a Front RH Engine Mount Sub-Assy requires mechanical precision and safety precautions. The process varies slightly depending on vehicle design, but general steps include:

1. Preparation
   Park the vehicle securely, disconnect the battery, and allow the engine to cool.

2. Support the Engine
   Use a floor jack with a wooden block or an overhead engine support bar to hold the engine in place during mount removal.

3. Remove the Old Mount
   Unbolt the existing mount from both the chassis and the engine bracket. Inspect surrounding components for wear or damage.

4. Install the New Mount
   Align the new mount carefully, insert bolts, and tighten them to the manufacturer’s torque specifications.

5. Final Checks
   Ensure the engine is level and aligned. Look for any abnormal clearance or contact points.

6. Test Drive
   Start the engine and observe for vibration, movement, or unusual noise. Drive the vehicle to confirm proper performance.

Professional installation is advisable to ensure correct positioning and torque application.

Inspection and Maintenance

Though generally maintenance-free, the mount should be inspected during routine service. Key points to check include:

• Condition of the rubber insulator (cracking, drying, sagging)

• Evidence of fluid leaks (if hydraulic)

• Engine alignment and position

• Noise or vibration during operation

Preventive maintenance helps avoid sudden mount failure and associated complications.

Key Benefits of Replacement

• Restored Engine Stability
  Keeps the engine secure, improving drivability and overall control.

• Reduced Cabin Noise and Vibration
  Enhances ride comfort and minimizes harshness.

• Increased Component Longevity
  Prevents strain on belts, hoses, sensors, and transmission parts.

• Smoother Gear Shifting
  A stable engine mount reduces jerking during gear transitions.

• Improved Safety
  Minimizes engine movement in emergency maneuvers or minor collisions.
