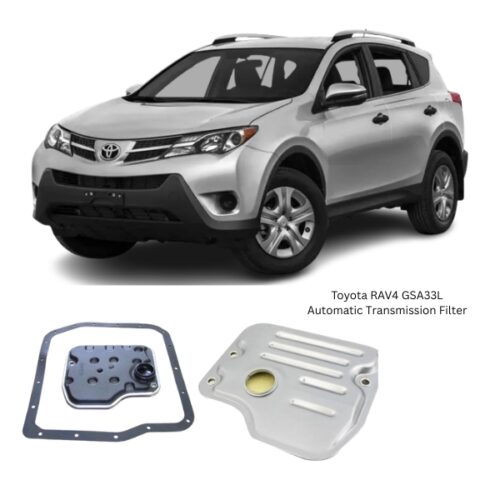

Toyota RAV4 GSA33L Automatic Transmission Filter Assy JT422K

Get Toyota RAV4 GSA33L Automatic Transmission Filter Assy JT422K in Kenya

The Automatic Transmission Filter Assembly JT422K is a critical component designed to protect and extend the life of automatic transmission systems by filtering out harmful particles from the transmission fluid. The efficiency and cleanliness of the transmission fluid directly influence shift quality, system responsiveness, and overall transmission durability. The JT422K is built to provide precise filtration, robust performance, and reliable operation under a wide range of driving conditions.

Over time, clutch material, metal shavings, and contaminants can accumulate within the transmission system. Without an effective filter, these particles circulate through valves, solenoids, and bearings—leading to erratic shifting, transmission slippage, and eventually internal failure. The JT422K transmission filter prevents these issues by trapping contaminants and ensuring only clean fluid is recirculated.

Construction and Materials

The JT422K Transmission Filter Assembly is engineered using high-quality materials and manufacturing techniques to meet or exceed original equipment standards. It includes several key components:

1. Filter Media – The core of the assembly, typically composed of high-performance cellulose or synthetic fiber. It traps fine particles and debris while allowing consistent fluid flow.

2. Filter Housing – The outer shell, made from heat- and corrosion-resistant composite or metal, protects the filter element and maintains structural stability under varying pressure and temperature.

3. Sealing Gasket or O-Ring – Prevents fluid bypass and ensures a tight, leak-free seal between the filter and the transmission body.

4. Suction Tube or Pick-Up Neck – Allows fluid to enter the filter from the transmission pan, designed for minimal resistance and maximum flow.

5. Mounting Plate or Bolt Holes – For secure installation to the valve body or transmission case, ensuring alignment and proper operation.

6. Integrated Magnet (in some designs) – Positioned in or near the filter to capture ferrous particles from the fluid, enhancing overall system cleanliness.

Each component in the JT422K is precisely manufactured for optimal compatibility, sealing performance, and filtration capacity.

Function and Role in the Transmission System

The automatic transmission relies on hydraulic pressure generated by transmission fluid to control gear engagement, torque converter operation, and clutch pack actuation. The JT422K Transmission Filter ensures that this fluid remains free from contamination.

Its primary roles include:

• Filtering Fluid – Removes debris such as clutch friction particles, gear wear fragments, and external contaminants.

• Protecting Internal Parts – Prevents valve body clogging, solenoid sticking, and pump damage by capturing harmful particles.

• Maintaining Pressure Stability – Consistent flow and clean fluid support accurate and efficient hydraulic operation.

• Reducing Overheating Risk – Clean fluid transfers heat more effectively, helping maintain optimal operating temperature.

• Supporting Smooth Gear Changes – Contaminant-free fluid allows solenoids and valves to respond rapidly and accurately.

Without effective filtration, even small amounts of contamination can lead to sluggish shifting, loss of power, and eventual transmission failure.

Advantages of the JT422K Filter Assembly

The JT422K offers numerous benefits that make it an ideal solution for regular service or transmission repairs:

• High Filtration Efficiency – Captures a broad spectrum of contaminants without restricting fluid flow.

• Durable Design – Built to withstand harsh operating conditions, pressure variations, and high fluid temperatures.

• Leak-Free Fitment – Includes high-quality gaskets or seals that prevent bypass and fluid leaks.

• Optimized Flow Dynamics – Ensures the transmission pump receives adequate fluid supply at all times.

• Corrosion and Heat Resistant – Maintains integrity even during extended high-temperature operations.

• Supports Long Service Intervals – Designed for extended maintenance cycles, providing peace of mind between changes.

Whether used in daily driving or heavier load conditions, the JT422K contributes to consistent transmission performance and reduced long-term wear.

Symptoms of a Clogged or Faulty Transmission Filter

When the transmission filter becomes clogged or fails, several symptoms may appear. Recognizing these early can prevent further system damage:

• Delayed or Slipping Gear Shifts – Reduced hydraulic pressure due to restricted fluid flow affects clutch engagement.

• Whining or Buzzing Noise – Blocked filter can cause pump cavitation, leading to abnormal sounds.

• Overheating Transmission – Debris-laden fluid reduces cooling efficiency, resulting in high fluid temperatures.

• Fluid Contamination – Discolored, dark, or burnt-smelling fluid is a strong indicator of filtration failure.

• Warning Lights or Error Codes – Many vehicles monitor transmission function and will trigger alerts when internal pressure or flow issues occur.

• Jerky or Rough Shifting – Contaminants in valves or solenoids interfere with smooth operation.

Replacing the JT422K filter as part of routine service can prevent these issues and preserve optimal transmission function.

Installation Procedure

Installing the JT422K Automatic Transmission Filter Assembly should be performed during a transmission fluid service or overhaul. General steps include:

1. Raise and Secure the Vehicle – Ensure the transmission pan is accessible and the vehicle is safely lifted.

2. Drain the Transmission Fluid – Loosen the drain plug or carefully remove the transmission pan to drain old fluid.

3. Remove the Transmission Pan – Detach the bolts and gently lower the pan. Clean any residue, magnets, and sludge.

4. Remove the Old Filter – Unscrew or unclip the old filter. Note the location of any O-rings or seals.

5. Clean Mounting Surfaces – Remove old gasket material and inspect sealing areas for debris or wear.

6. Install the JT422K Filter – Use a new seal or O-ring, align properly, and secure according to torque specifications.

7. Replace the Transmission Pan – Install with a new gasket and torque bolts evenly to avoid leaks.

8. Refill the System with Transmission Fluid – Use the correct type and quantity of fluid as per the transmission specification.

9. Start and Test – With the engine running, check for leaks, monitor fluid level, and shift through all gears to ensure proper operation.

Always refer to the manufacturer’s service manual for specifications, torque settings, and fluid recommendations.

Maintenance Guidelines

To maximize the service life of the JT422K filter and the transmission system as a whole, regular maintenance is recommended:

• Follow Service Intervals – Change fluid and filter every 40,000 to 80,000 kilometers, depending on driving conditions.

• Use High-Quality Fluids – Only use fluids recommended for your transmission type to prevent seal damage and ensure compatibility.

• Inspect for Leaks – Regularly check for signs of fluid leaks around the pan, cooler lines, and gaskets.

• Monitor Fluid Color – Healthy fluid should be bright red or amber. Dark or gritty fluid signals contamination.

• Address Warning Lights Promptly – A warning light may indicate a restriction or pressure issue that the filter can influence.

Proper care of the transmission and filter ensures smooth operation, efficiency, and fewer repairs over the lifespan of the vehicle.
