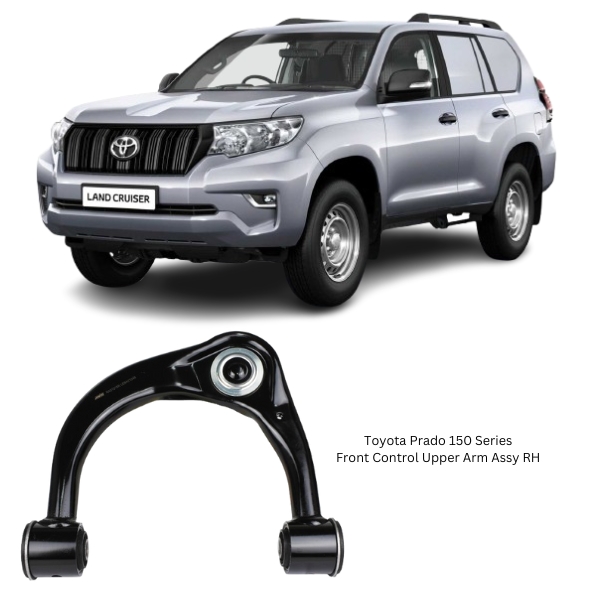

Toyota Land Cruiser Prado 150 Front Control Upper Arm Assy RH 48610-60050

Get Toyota Land Cruiser Prado 150 Front Control Upper Arm Assy RH 48610-60050 in Kenya

The Front Upper Control Arm Assembly RH (Right-Hand) is a critical suspension component designed to link the vehicle’s frame or body to the upper part of the front right wheel assembly. It plays a pivotal role in maintaining wheel alignment, ensuring steering accuracy, and supporting the dynamic motion of the suspension system.

Located above the steering knuckle, the upper control arm works in coordination with the lower control arm to guide the wheel through its vertical travel arc. Its main function is to control the motion of the upper portion of the wheel hub while allowing for smooth and controlled suspension articulation. Without a properly functioning upper control arm, the vehicle’s alignment, handling, and ride quality are significantly compromised.

Design and Construction

The Front Upper Control Arm Assembly RH is engineered for strength, precision, and durability. It is typically constructed from one of the following materials:

• Stamped Steel: Known for high structural integrity and cost-effectiveness.

• Forged Aluminum: Lightweight yet strong, ideal for reducing unsprung weight.

• Cast Iron: Durable and often used in heavy-duty applications requiring extreme strength.

The assembly includes essential components such as:

• Arm Body: The main structure that forms the “A” or “L” shape, responsible for connecting the frame to the steering knuckle.

• Ball Joint: Located at the outer end of the arm, this pivot point allows rotational movement and vertical articulation. It enables smooth turning and suspension motion.

• Bushings: Found at the inner pivot points, bushings are usually made of rubber or polyurethane. They isolate vibration, absorb shock, and allow controlled movement of the control arm.

• Protective Coatings: The arm is often treated with corrosion-resistant coatings such as powder coating or e-coating to protect it from rust, road salts, and environmental contaminants.

Each component is precision-engineered to function under extreme conditions while maintaining accurate alignment and articulation.

Function Within the Suspension System

The Front Upper Control Arm Assembly RH performs several key tasks that are essential for optimal suspension and steering performance:

1. Controls Camber Angle: As the suspension moves, the upper control arm helps maintain correct camber alignment, which is crucial for tire contact and wear.

2. Supports Suspension Geometry: It stabilizes the position of the steering knuckle and works in conjunction with the lower control arm to guide the vertical movement of the wheel.

3. Maintains Wheel Alignment: Ensures that the wheel stays in proper alignment relative to the vehicle’s chassis, even during bumps or cornering.

4. Transfers Suspension Loads: Helps manage forces generated from braking, turning, and uneven terrain.

5. Enhances Handling Stability: By keeping the tire flat against the road surface during motion, it contributes to stable and responsive vehicle handling.

Advantages of a High-Quality Upper Control Arm Assembly

Investing in a premium-quality Front Upper Control Arm Assembly RH offers several performance, safety, and durability benefits:

• Improved Steering Precision: Maintains accurate geometry, allowing for consistent steering response during all driving conditions.

• Extended Tire Life: Helps preserve correct alignment angles, reducing the risk of uneven or premature tire wear.

• Enhanced Ride Comfort: Absorbs shocks and isolates road vibrations, delivering a smoother and quieter driving experience.

• Reliable Suspension Performance: Preserves the function of adjacent components such as shocks, springs, and sway bars.

• Greater Safety: Reduces the risk of erratic handling or steering instability, especially at high speeds or during emergency maneuvers.

• Durability in Harsh Conditions: With corrosion-resistant finishes and rugged construction, it performs reliably in both on-road and off-road environments.

Common Signs of Wear or Failure

Over time, the Front Upper Control Arm Assembly RH may wear down due to exposure to road elements, mechanical stress, or age. Recognizing early symptoms of failure is essential for maintaining suspension health and safety. Common signs include:

• Clunking or Rattling Sounds: Usually caused by worn bushings or a failing ball joint, especially noticeable when driving over bumps or turning.

• Uneven Tire Wear: If camber or caster angles are thrown off by a worn control arm, it can result in irregular tire tread patterns.

• Poor Handling or Instability: Loose or damaged joints can lead to a floaty or imprecise steering feel.

• Steering Pulling to One Side: Misalignment resulting from a failing upper control arm can cause the vehicle to drift.

• Excessive Vibration in Steering: Damaged bushings or joints can transmit road vibrations directly into the steering system.

• Visual Damage: Cracks, bends, or severe corrosion may be visible upon inspection.

Installation and Replacement Overview

Replacing the Front Upper Control Arm Assembly RH is a task best performed by a skilled technician, especially due to the need for precise alignment and correct torque specifications. General steps include:

1. Secure and Lift the Vehicle: Use jack stands to safely raise and support the vehicle.

2. Remove the Front Right Wheel: This provides access to the control arm assembly.

3. Detach the Ball Joint: Separate the ball joint from the steering knuckle using appropriate tools.

4. Unbolt the Arm from the Frame or Mounting Bracket: Remove the control arm’s pivot bolts.

5. Install the New Control Arm: Align it with the factory mounting points, insert bolts, and reconnect the ball joint.

6. Torque All Fasteners: Use a torque wrench to meet manufacturer-recommended specifications.

7. Perform a Wheel Alignment: Essential after installation to restore correct suspension geometry and prevent tire wear.

Proper installation ensures longevity, handling accuracy, and safe suspension operation.

Maintenance Tips

While the upper control arm is designed to be durable and low-maintenance, periodic inspection and care can extend its lifespan:

• Check Bushings and Ball Joint for Wear: Look for signs of cracking, loosening, or leaking grease.

• Inspect After Rough Driving: If the vehicle has been exposed to heavy loads, off-road terrain, or impact with curbs or potholes, inspect for damage.

• Clean the Undercarriage: Removing dirt and salt buildup can help prevent corrosion and preserve component integrity.

• Monitor Alignment and Handling: If alignment drifts or handling deteriorates, the control arm may be a contributing factor.

• Replace as a Set When Necessary: If one side is worn, the other side may be close behind. Replacing both upper arms together ensures balanced performance.

Why Precision Fitment Matters

Correct fitment of the Front Upper Control Arm Assembly RH is essential for suspension performance. The arm must match the specific suspension geometry of the vehicle. Improper fitment can lead to:

• Poor wheel alignment

• Premature tire and suspension wear

• Interference with steering and braking systems

• Increased risk of mechanical failure

Choosing a control arm manufactured to OEM specifications ensures that the suspension system maintains its intended function and safety.
