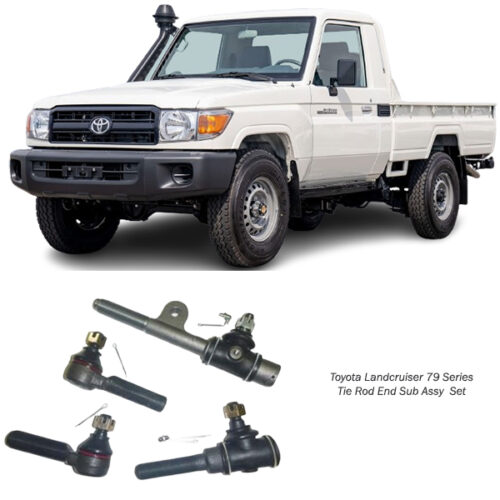

Get Toyota Land Cruiser 79 Series 4X4 Tie Rod End Sub Assy Set SE-2752RX in Kenya
The tie rod end sub-assembly set is a critical component in a vehicleโs steering and suspension system, responsible for connecting the steering mechanism to the wheels. It ensures precise wheel movement, enabling the driver to maintain control and stability during driving. This guide will delve into the design, functions, benefits, signs of wear, maintenance practices, and replacement of tie rod ends in comprehensive detail.
What is a Tie Rod End Sub-Assembly Set?
The tie rod end sub-assembly set comprises the inner and outer tie rod ends, which connect the steering rack to the steering knuckle. These components play a vital role in transmitting force from the steering system to the wheels, allowing them to pivot and turn as the driver maneuvers the steering wheel.
Tie rod ends are small yet durable parts that bear significant stress and wear, given their constant movement and exposure to road conditions.
Components of a Tie Rod End Sub-Assembly Set
- Inner Tie Rod End
Located closer to the steering rack, it connects the steering rack to the outer tie rod end via an adjustment sleeve. - Outer Tie Rod End
Connects the inner tie rod to the steering knuckle and facilitates precise turning movements. - Ball Joints
Allow for rotational and pivotal movements, ensuring smooth articulation as the wheels turn and suspension moves. - Seals and Boots
Protect the ball joints from dirt, debris, and moisture, ensuring longevity. - Adjustment Sleeves
Allow for fine-tuning of alignment during installation or maintenance.
Functions of the Tie Rod End Sub-Assembly Set
- Transmit Steering Force
Transfers the rotational force from the steering gear to the wheels, enabling directional control. - Facilitate Wheel Movement
Works with the steering knuckle to ensure the wheels pivot accurately based on the driverโs input. - Support Suspension Dynamics
Accommodates up-and-down suspension movements while maintaining consistent steering performance. - Maintain Wheel Alignment
Contributes to proper wheel alignment, ensuring stability, safety, and even tire wear.
How Tie Rod Ends Work
When the driver turns the steering wheel:
- Steering Input: The steering gear or rack-and-pinion system moves laterally.
- Force Transmission: This movement is transmitted to the inner tie rod, which pulls or pushes the outer tie rod.
- Wheel Pivoting: The outer tie rod turns the steering knuckle, allowing the wheel to pivot and change direction.
This seamless operation is essential for precise handling and safety on the road.
Benefits of a Tie Rod End Sub-Assembly Set
- Enhanced Steering Precision
Tie rod ends ensure accurate transmission of steering input, offering improved control and handling. - Improved Safety
Facilitates stable and predictable vehicle behavior, reducing the risk of accidents. - Reduced Tire Wear
Properly functioning tie rod ends maintain wheel alignment, preventing uneven tire wear. - Smooth Ride Quality
Works in tandem with the suspension to absorb minor road irregularities, contributing to a more comfortable driving experience. - Cost-Effective Maintenance
Replacing worn tie rod ends is more economical than addressing larger issues arising from neglect, such as damaged tires or suspension components.
Signs of a Failing Tie Rod End
- Unusual Tire Wear
Uneven or excessive wear on the inner or outer edges of tires may indicate misaligned wheels due to worn tie rod ends. - Loose Steering
Increased play or slack in the steering wheel can signify a failing tie rod end. - Steering Wheel Vibration
Vibrations while driving, especially at higher speeds, may be caused by a loose or damaged tie rod. - Clunking Noises
Audible clunks or knocking sounds when turning the steering wheel or driving over bumps often point to worn tie rod joints. - Poor Alignment
If the vehicle drifts to one side or requires constant correction to maintain a straight path, faulty tie rod ends could be the culprit. - Difficulty Steering
Increased effort to turn the steering wheel may result from damaged tie rod components.
Maintenance Tips for Tie Rod End Sub-Assembly
- Regular Inspections
- Check for cracks, tears, or looseness in the protective boots.
- Inspect for excessive play in the tie rod ends during routine maintenance.
- Lubrication
- Grease fittings on certain tie rod ends should be regularly lubricated to minimize wear.
- Alignment Checks
- Conduct wheel alignment checks periodically to ensure proper adjustment.
- Protective Measures
- Avoid driving through deep water or mud, which can compromise seals and boots.
- Monitor Steering Performance
- Be alert to changes in steering behavior or unusual noises, addressing issues promptly.
Replacement of Tie Rod Ends
- When to Replace
- Worn or damaged tie rod ends should be replaced immediately to prevent further complications.
- Replacement may also be necessary during major suspension overhauls or after accidents.
- Replacement Process
- Lift the Vehicle: Safely raise and support the car to access the steering components.
- Remove the Old Tie Rods: Loosen and detach the tie rod ends from the steering knuckle and adjustment sleeve.
- Install the New Tie Rods: Securely attach the new tie rod ends, ensuring proper torque and alignment.
- Perform Alignment: Align the wheels after replacement to maintain proper handling and tire wear.
- Professional Assistance
While experienced DIY enthusiasts can replace tie rod ends, professional services ensure precise installation and alignment.
Common Issues with Tie Rod End Sub-Assemblies
- Ball Joint Wear
- Continuous movement and load can cause the ball joint to wear, leading to looseness or failure.
- Damaged Boots
- Torn or worn protective boots expose the joints to contaminants, accelerating wear.
- Corrosion
- Moisture exposure can lead to rust and weaken the tie rod ends over time.
- Improper Installation
- Incorrect installation can result in misalignment, reducing performance and safety.
Environmental Considerations
Discarded tie rod ends should be disposed of responsibly, as they are primarily made of metal and can be recycled. Always ensure used components are taken to a recycling facility or automotive shop for proper processing.
Conclusion
The tie rod end sub-assembly set is a vital link between the steering system and the wheels, directly influencing a vehicle’s safety, handling, and performance. Regular inspection, timely maintenance, and prompt replacement of worn components ensure the system functions optimally. For drivers, understanding the role and care of tie rod ends not only enhances their driving experience but also extends the lifespan of their vehicle’s steering and suspension systems.
