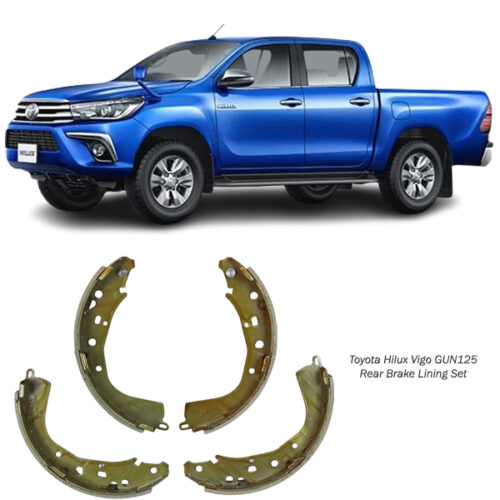

Toyota Hilux Vigo GUN125 Rear Brake Lining Set 04495-0K160

Get Toyota Hilux Vigo GUN125 Rear Brake Lining Set 04495-0K160 in Kenya

The rear brake lining set is a fundamental component of a vehicle’s braking system. This set ensures that the rear wheels contribute effectively to stopping the vehicle, maintaining balance, and providing safety. Understanding its role, features, benefits, and maintenance is essential for every vehicle owner or mechanic.

What is a Rear Brake Lining Set?

The rear brake lining set consists of friction material attached to the brake shoes that press against the brake drum to create stopping force. It is part of the drum brake system commonly used in the rear wheels of many vehicles, especially in smaller cars, older models, or vehicles requiring parking brakes integrated into the rear brakes.

Components of a Rear Brake Lining Set

1. Brake Linings:
   Made from high-friction materials, these are the surfaces that contact the brake drum to slow or stop the vehicle.
2. Brake Shoes:
   Metal components that hold the brake linings and provide structural integrity.
3. Spring and Hardware Kit (Optional):
   Sometimes included, this kit contains springs and clips to secure and position the brake shoes properly.
4. Backing Plate (Optional):
   A sturdy plate that mounts the brake shoes and helps align the components.

How Does the Rear Brake Lining Work?

1. Activation:
   When the brake pedal is pressed, hydraulic pressure is transmitted to the wheel cylinders in the rear brake system.
2. Contact with Brake Drum:
   The wheel cylinders push the brake shoes outward, forcing the linings to press against the inner surface of the rotating brake drum.
3. Friction and Stopping Power:
   The friction between the brake linings and the drum slows the wheel, bringing the vehicle to a halt.

Types of Brake Linings

1. Organic Linings:
   Made from non-metallic materials like rubber and resin. These are quieter and environmentally friendly but wear out faster.
2. Semi-Metallic Linings:
   Contain a mixture of metal fibers and other materials. These provide excellent heat dissipation and durability but can be noisy.
3. Ceramic Linings:
   Known for high performance, reduced noise, and longevity, but are more expensive.

Functions of the Rear Brake Lining Set

1. Braking Force Distribution:
   While the front brakes handle most of the braking force, the rear brake linings ensure balance by contributing to deceleration.
2. Parking Brake Efficiency:
   Rear brakes, often integrated with the parking brake mechanism, rely on the linings for effective operation.
3. Vehicle Stability:
   The rear brakes prevent the vehicle from swerving or skidding during braking.

Benefits of a High-Quality Rear Brake Lining Set

1. Enhanced Stopping Power:
   Quality linings ensure consistent braking performance under various conditions.
2. Reduced Noise and Vibrations:
   Properly manufactured linings minimize squealing and vibrations, providing a smoother driving experience.
3. Longevity:
   Durable materials increase the lifespan of the linings, reducing the frequency of replacements.
4. Heat Resistance:
   Good linings dissipate heat effectively, preventing brake fade during prolonged use.
5. Safety Assurance:
   Reliable braking components ensure safety for the driver, passengers, and other road users.

Signs of Worn Rear Brake Linings

1. Squealing or Grinding Noises:
   Indicates that the linings are worn down to the metal backing plate.
2. Reduced Braking Performance:
   Increased stopping distance or a spongy brake pedal feel suggests worn linings.
3. Visible Wear:
   During inspection, thin or unevenly worn linings signal the need for replacement.
4. Brake Pedal Vibrations:
   Warped drums or worn linings can cause pulsations when braking.
5. Burning Smell:
   Overheating brakes, often due to worn linings, can produce a distinct odor.

Common Causes of Rear Brake Lining Wear

1. Driving Habits:
   Aggressive braking or frequent stop-and-go driving accelerates wear.
2. Overloading the Vehicle:
   Carrying heavy loads puts extra stress on the braking system, causing faster wear.
3. Poor Maintenance:
   Neglecting regular inspections and adjustments can lead to uneven or premature wear.
4. Faulty Components:
   Malfunctioning wheel cylinders or hardware can cause uneven pressure on the linings.

Maintenance Tips

1. Regular Inspections:
   Check the brake linings during routine servicing to detect wear early.
2. Clean the Brake System:
   Remove dust and debris from the brake components to prevent excessive wear.
3. Adjust the Brakes:
   Ensure proper alignment and adjustment of the brake shoes for optimal contact with the drum.
4. Replace in Pairs:
   Always replace both rear brake linings together to maintain balance and efficiency.
5. Use Quality Parts:
   Invest in high-quality brake linings and components for reliable performance.

Replacement Process

Replacing a rear brake lining set requires attention to detail and mechanical skills. Below is a general guide:

1. Preparation:
   Gather tools such as a jack, jack stands, brake cleaner, and a replacement lining set.
2. Lift the Vehicle:
   Secure the vehicle on jack stands and remove the rear wheels.
3. Remove the Brake Drum:
   Carefully slide off the drum to access the brake shoes and linings.
4. Disassemble Components:
   Detach the springs, clips, and hardware securing the brake shoes.
5. Inspect and Clean:
   Examine the drum and hardware for wear, and clean the area with brake cleaner.
6. Install New Linings:
   Attach the new brake linings to the brake shoes, ensuring proper positioning.
7. Reassemble and Test:
   Reinstall the drum, adjust the brakes, and test the system for proper operation.

When to Replace Rear Brake Linings

1. Thickness Below Specification:
   Replace linings when they are thinner than the manufacturer’s recommended limit.
2. Uneven Wear:
   If one side is significantly more worn than the other, replace both sides.
3. Age:
   Even if not fully worn, older linings may harden and lose effectiveness over time.

OEM vs. Aftermarket Rear Brake Linings

• OEM Linings:
  Manufactured to exact specifications for your vehicle, ensuring a perfect fit and performance.
• Aftermarket Linings:
  Offer more variety and can be cost-effective, but quality may vary by brand.

Benefits of Timely Replacement

1. Restored Braking Efficiency:
   New linings ensure optimal stopping power.
2. Increased Safety:
   Fresh components reduce the risk of brake failure.
3. Improved Driving Comfort:
   Eliminates noise and vibrations caused by worn linings.
4. Protection for Other Components:
   Prevents damage to the brake drum and other related parts.

Conclusion

The rear brake lining set is a crucial part of your vehicle’s braking system. Regular maintenance, timely inspections, and the use of high-quality components ensure your vehicle remains safe and performs optimally. Investing in proper care and replacement of brake linings not only enhances safety but also extends the lifespan of your braking system, providing peace of mind on every journey.
