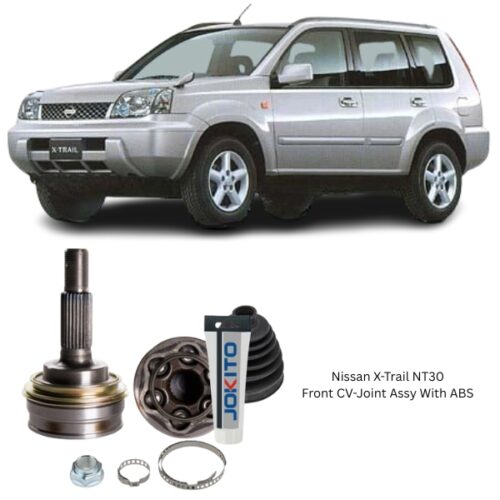

Nissan X-Trail NT30 Front CV-Joint Assy With ABS NI-69A

Get Nissan X-Trail NT30 Front CV-Joint Assy With ABS NI-69A in Kenya

The Front Constant Velocity (CV) Joint Assembly with ABS is a critical drivetrain component designed to transfer power from the transmission to the front wheels while maintaining smooth rotational speed, even as the suspension articulates and the wheels turn. When equipped with an ABS (Anti-lock Braking System) ring or tone wheel, the assembly becomes integral not only to drive performance but also to modern safety systems. This makes it one of the most vital parts in front-wheel-drive and all-wheel-drive vehicles.

Constructed with precision and durability in mind, this front CV-joint assembly ensures seamless torque delivery, optimal wheel movement, and uninterrupted ABS functionality.

What is a CV Joint Assembly?

The CV joint (Constant Velocity joint) is a mechanical coupling that allows a driveshaft to transmit power at a constant rotational speed regardless of the angle of the joint. In front-wheel-drive (FWD) and all-wheel-drive (AWD) vehicles, it connects the transaxle (or differential) to the wheel hub, allowing power to reach the front wheels even as they move vertically (suspension travel) and rotate (steering).

A complete CV-joint assembly typically includes:

• Outer CV joint

• Inner CV joint

• Drive shaft (axle shaft)

• Protective rubber boots

• Grease and clamps

• ABS tone ring (if equipped)

When fitted with ABS, the tone ring on the joint interacts with the ABS sensor to provide real-time data on wheel speed, which is crucial for preventing wheel lock-up during hard braking.

Key Functions of a Front CV-Joint Assembly with ABS

1. Torque Transmission Across Angles
   Allows consistent power transfer from the engine to the wheels, regardless of suspension movement or steering input.

2. Steering and Suspension Flexibility
   Accommodates changes in angle and position as the front wheels turn and move up/down with road surface conditions.

3. Smooth Driving Performance
   Eliminates drivetrain vibration or clunking, ensuring a comfortable and quiet ride.

4. ABS Sensor Integration
   The built-in tone ring interacts with the ABS sensor to relay wheel speed data, supporting traction control and anti-lock braking.

Where It’s Located

The Front CV-Joint Assembly is installed between the transmission/differential and the front wheel hub on both the driver and passenger sides. Each assembly comprises:

• Inner joint connected to the transmission

• Axle shaft connecting both joints

• Outer joint connected to the wheel hub

The ABS tone ring is usually positioned on or near the outer joint, where it aligns with the wheel speed sensor.

Materials and Construction

A premium CV-joint assembly is built to withstand extreme conditions and high torque demands. Typical features include:

• Forged steel joints for maximum strength and wear resistance.

• High-tensile axle shafts, precision-machined for torque consistency.

• Thermal-treated roller bearings or ball bearings for long-lasting rotational stability.

• Molybdenum-disulfide fortified grease, pre-packed for optimal lubrication.

• Heavy-duty rubber or thermoplastic boots, resistant to road salt, debris, and temperature extremes.

• OEM-spec ABS tone ring, precisely calibrated for accurate sensor readings.

These assemblies are engineered to meet or exceed OE specifications for fitment, performance, and longevity.

Benefits of a CV Joint Assembly with ABS

• ✅ Improved Ride Comfort: Reduces vibrations and drivetrain harshness.

• ✅ Enhanced Steering Response: Ensures smooth power delivery during sharp turns.

• ✅ Reliable ABS Integration: Supports wheel speed feedback for safe braking.

• ✅ Lower Maintenance Costs: Pre-assembled design simplifies installation and reduces labor.

• ✅ Fuel Efficiency: Maintains mechanical efficiency in the drivetrain, reducing drag.

• ✅ Safety: Prevents joint separation or failure, which could cause wheel detachment or loss of control.

Common Signs of a Failing CV Joint Assembly

Failure of the front CV-joint assembly can cause serious drivability and safety concerns. Symptoms include:

• Clicking or popping noises when turning sharply—especially at low speeds.

• Grease splatter on the inside of the wheel or undercarriage—caused by torn boots.

• Vibration during acceleration, felt through the floorboard or steering.

• Knocking or clunking sounds during forward or reverse movement.

• ABS warning light on the dashboard—can result from a damaged or misaligned tone ring.

Ignoring these signs can lead to complete joint failure, potentially resulting in vehicle immobilization or loss of control.

Installation Notes

While replacing the CV-joint assembly is a moderately technical job, it is a bolt-on replacement when using a complete pre-assembled unit. General installation involves:

1. Lifting and securing the vehicle

2. Removing the wheel and axle nut

3. Disconnecting the lower control arm or strut for access

4. Removing the old CV-joint from the hub and transmission

5. Installing the new CV-joint assembly

6. Re-torquing all fasteners to spec

7. Rechecking ABS sensor alignment and functionality

After installation, it is advised to test drive the vehicle and clear any ABS codes if needed.

Maintenance Tips

• Inspect CV boots regularly for cracks, tears, or leaks.

• Listen for unusual sounds during turning or acceleration.

• Keep wheel speed sensors clean to avoid ABS light errors.

• Replace in pairs (LH and RH) if both sides show signs of wear to maintain balance.

Why Choose a High-Quality CV-Joint Assembly

Cheap or low-grade assemblies may not hold up under high torque loads or may lack precise ABS tone ring calibration. This can lead to:

• Inaccurate ABS readings

• Premature boot failure

• Incomplete axle engagement

• Noise, vibration, or even catastrophic failure

A quality CV-joint assembly ensures smooth, safe, and efficient vehicle operation.
