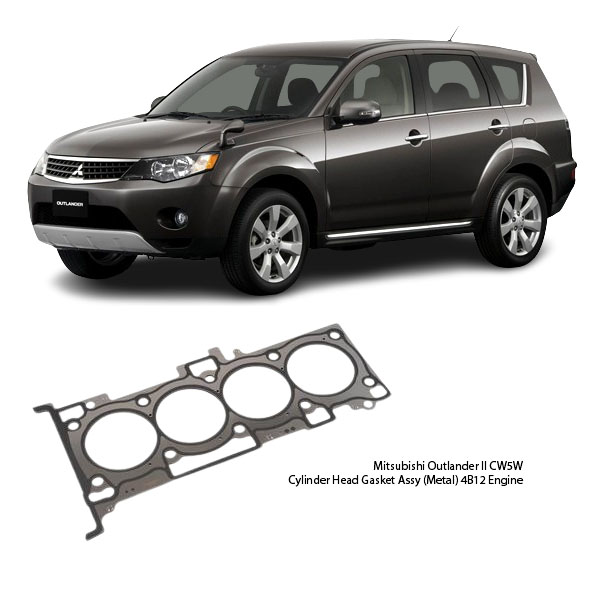

Mitsubishi Outlander II CW5W Cylinder Head Gasket Assy 4B12 Engine TG5248S

Get Mitsubishi Outlander II CW5W Cylinder Head Gasket Assy 4B12 Engine TG5248S in Kenya

The Cylinder Head Gasket Assembly is one of the most critical sealing components in an internal combustion engine. Specifically designed for the 4B12 engine, a widely used 2.4L inline-4 powerplant found in various vehicles, the TG5248S head gasket assembly ensures high-performance sealing between the cylinder block and the cylinder head. This gasket is tasked with maintaining compression and preventing the leakage of coolant and engine oil, ensuring optimal engine function, safety, and durability.

What is a Cylinder Head Gasket Assembly?

The Cylinder Head Gasket is located between the engine block and the cylinder head. In the case of the 4B12 engine, the gasket serves as a seal that handles three key elements:

1. Sealing the combustion chambers – allowing for proper compression and engine power.

2. Separating oil and coolant passages – preventing cross-contamination between engine oil and coolant.

3. Withstanding high pressure and temperature – maintaining its integrity during thousands of heat cycles and combustion events.

The TG5248S gasket is designed to meet the precise specifications of the 4B12 engine, ensuring reliable performance even under extreme pressure and temperature. It is made from high-grade materials such as multi-layer steel (MLS), elastomer coatings, or composite fibers, providing a tight seal, excellent thermal conductivity, and resistance to deformation.

Importance of the Cylinder Head Gasket in Engine Performance

Despite being thin and relatively lightweight, the head gasket is vital to engine operation. It supports engine performance, safety, and longevity in the following ways:

1. Compression Sealing

The gasket ensures that the combustion chamber remains sealed at all times, allowing for maximum compression. This contributes directly to engine power, efficiency, and responsiveness. A proper seal means that fuel combustion is optimized, and performance is consistent.

2. Fluid Separation

The gasket prevents oil and coolant from mixing or leaking into the combustion chamber. Oil is needed for lubrication, while coolant is used for temperature regulation. Keeping these fluids separate is essential for engine health and effective operation.

3. Heat Resistance

Modern engines, including the 4B12, generate substantial heat. The gasket must tolerate high temperatures without warping or breaking down. The TG5248S is manufactured using high-heat-resistant materials that can survive the thermal stress of extended use.

4. Maintains Engine Integrity

By holding the head and block together under high torque and pressure, the gasket contributes to the structural integrity of the engine. A failure in this area can result in serious engine damage or total failure.

Consequences of a Faulty Cylinder Head Gasket

The cylinder head gasket is exposed to continuous stress and harsh conditions. Over time, or due to overheating, poor installation, or substandard material, it can fail. Here are the primary consequences of a failing or blown head gasket:

1. Loss of Compression

When the gasket fails to seal the combustion chamber properly, it results in a loss of compression. This can cause misfires, poor acceleration, reduced power, and rough engine performance.

2. Coolant and Oil Mixing

A failing gasket can allow coolant and oil to mix. This can lead to the contamination of both fluids, resulting in poor lubrication, engine overheating, and eventual engine damage. Milky oil on the dipstick or oil in the radiator are common indicators.

3. Overheating

A blown head gasket can cause coolant to leak or be consumed during combustion. With insufficient coolant circulation, the engine can overheat, damaging internal parts like pistons, rings, and even the cylinder head itself.

4. White Smoke from the Exhaust

When coolant leaks into the combustion chamber, it burns with the air-fuel mixture, producing thick white smoke from the exhaust. This is a clear symptom of head gasket failure.

5. Engine Knocking or Tapping

Oil starvation caused by gasket failure can result in metal-on-metal contact inside the engine, creating knocking or tapping sounds. Prolonged operation in this state can lead to catastrophic engine damage.

Symptoms of a Worn or Blown Head Gasket

Early diagnosis of a failing cylinder head gasket can save the engine from severe damage. Some common signs include:

• Persistent engine overheating

• White smoke from the exhaust

• Milky or frothy oil

• Bubbles in the radiator or coolant overflow tank

• Loss of engine power or misfiring

• Coolant consumption without visible leaks

• Check engine light or trouble codes related to misfires or coolant temperatures

Installation and Maintenance Considerations

The cylinder head gasket is not a serviceable item like an oil filter or spark plug. It is intended to last the lifetime of the engine, but certain practices can ensure its longevity or lead to early failure.

1. Professional Installation

Installing a head gasket, especially in a modern engine like the 4B12, requires precision. Torque specs, bolt sequences, and surface cleanliness must be followed meticulously. Improper installation often leads to premature failure.

2. Use Quality Components

Always use a gasket like the TG5248S, specifically designed for the 4B12 engine. Cheap, off-spec gaskets can fail early or perform poorly under stress. High-quality materials ensure better sealing and durability.

3. Proper Engine Cooling

Avoiding overheating is key to preserving gasket integrity. Keep the cooling system in good condition by maintaining coolant levels, replacing old coolant, inspecting the radiator, and ensuring the water pump and thermostat are working properly.

4. Regular Engine Inspections

During routine servicing, check for oil or coolant leaks, examine the color and consistency of oil and coolant, and monitor engine temperatures. Early detection of abnormalities can help prevent gasket failure.

5. Avoid Aggressive Driving with a Cold Engine

Hard acceleration or high loads before the engine warms up can increase stress on the head gasket. Allowing the engine to warm up before driving aggressively reduces wear and tear on internal components.

Benefits of the TG5248S Cylinder Head Gasket for the 4B12 Engine

The TG5248S gasket assembly is manufactured to meet or exceed OE standards for the 4B12 engine. Its advantages include:

• Multi-layered construction for excellent sealing under high pressure and heat.

• High-grade coatings that prevent micro-leaks and improve longevity.

• Precision fitment that matches the engine’s head and block geometry perfectly.

• Durability under extended cycles of thermal expansion and contraction.

• Resistance to chemical exposure from oils, coolants, and combustion by-products.

Choosing the TG5248S ensures optimal compatibility, performance, and reliability for your 4B12 engine, reducing the risk of engine failure and costly repairs.
