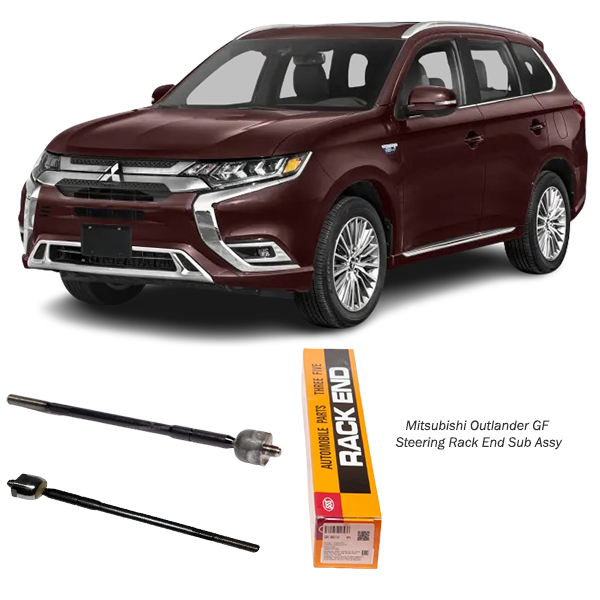

Mitsubishi Outlander GF Steering Rack End Sub-Assy SRB010

Mitsubishi Outlander GF Steering Rack End Sub-Assy SR-B010

Part No: SR-B010

Brand: 555

Fits: Mitsubishi Outlander GF/Lancer/ Galant RVR

Price Per Set

Original price was: KShs6,500.Current price is: KShs6,000.

Payment Methods:

Description

Get Mitsubishi Outlander GF Steering Rack End Sub-Assy SRB010 in Kenya

The Steering Rack End Sub-Assembly (or rack end) is a crucial component within the steering system, responsible for linking the steering rack to the wheels, facilitating precise control and stability while driving. Hereโ€™s an in-depth look at its structure, functions, importance, common issues, maintenance tips, and considerations for replacement.

1. Overview and Structure of the Steering Rack End Sub-Assembly

The steering rack end sub-assembly is located between the steering rack and the tie rod. It is essentially the inner tie rod that connects to the rack and pinion, which is part of the steering system. In a typical rack-and-pinion steering setup, this component works alongside the outer tie rod to ensure that the wheels respond directly to the steering wheelโ€™s motion.

Key parts within this sub-assembly include:

  • Ball Joints: These allow for flexibility and articulation, enabling the steering angles required for smooth turning.
  • Inner and Outer Tie Rods: The inner tie rod, specifically within the steering rack end sub-assembly, works with the outer tie rod to transfer movement from the steering rack to the wheels.
  • Bushings: These support the rod and reduce wear by absorbing vibrations and shocks.

The rack end sub-assembly can vary in size and design depending on the vehicle model and type of steering system. Typically, in vehicles with rack-and-pinion steering, it is compact and optimized for efficient steering response and minimal friction.

2. Functions of the Steering Rack End Sub-Assembly

The steering rack end sub-assembly has several essential functions:

  • Transmits Steering Wheel Input: When you turn the steering wheel, the steering rack end sub-assembly transmits this rotational movement to the wheels, making the vehicle turn accordingly.
  • Controls Wheel Alignment and Angle: The assembly ensures that the wheels maintain their alignment and correct angle, keeping the vehicle stable, especially during turns.
  • Provides Flexibility for Suspension Movement: Since wheels move up and down due to road conditions, the ball joints and bushings within the rack end sub-assembly allow for a degree of flexibility, maintaining the link between the wheels and the steering system.
  • Absorbs Vibration and Reduces Road Shock: The bushings absorb minor shocks and vibrations that occur while driving, protecting the steering system and improving comfort and control for the driver.

3. Importance of the Steering Rack End Sub-Assembly

The steering rack end sub-assembly is integral to a vehicle’s overall steering system, as it directly impacts handling, safety, and alignment:

  • Safety: A faulty rack end can result in imprecise steering, which could be dangerous at high speeds or in emergency situations.
  • Control and Stability: It plays a crucial role in the vehicleโ€™s handling and stability, especially during sharp turns, making it essential for smooth and controlled steering.
  • Steering Responsiveness: A well-maintained rack end ensures that the steering wheel’s movements are immediately and accurately reflected in the wheels, providing the driver with a more responsive and enjoyable driving experience.
  • Alignment Maintenance: This component helps keep the wheels aligned, reducing uneven tire wear and prolonging the life of other suspension and steering components.

4. Signs of a Faulty Steering Rack End Sub-Assembly

Knowing when the rack end needs attention or replacement can prevent major steering problems. Common symptoms include:

  • Steering Wheel Vibration: A worn or damaged rack end may cause the steering wheel to shake, especially at high speeds or during turns.
  • Clunking or Knocking Noises: If the inner tie rod or ball joint is worn out, you may hear clunking sounds when turning or going over bumps, as there is excessive play within the steering linkage.
  • Steering Play or Looseness: Excessive play in the steering wheel is often due to a failing rack end, which prevents the wheels from maintaining alignment accurately.
  • Uneven Tire Wear: A damaged rack end can result in misalignment, leading to uneven tire wear, which reduces tire life and affects the vehicleโ€™s overall performance.
  • Poor Steering Response: If the rack end is loose or worn, you may experience delayed or imprecise steering, affecting your control over the vehicle.

5. Causes of Wear and Failure

Several factors can contribute to the wear and tear or failure of the steering rack end sub-assembly:

  • Regular Driving Stress: Frequent steering inputs, especially during city driving or aggressive driving, can wear down the joints and bushings.
  • Environmental Exposure: Dirt, water, and road salts can infiltrate the ball joints and bushings, accelerating wear.
  • Improper Alignment or Suspension Issues: Poor alignment or suspension issues can cause additional stress on the rack end, leading to premature wear.
  • Low-Quality Components: Inferior aftermarket replacements can wear out faster, reducing the component’s overall lifespan.
  • Lack of Lubrication: The rack end sub-assembly requires adequate lubrication; without it, friction increases, leading to faster wear.

6. Maintenance and Care Tips

To prolong the life of the steering rack end sub-assembly, consider these maintenance tips:

  • Regular Inspections: Routine inspections of the steering system can help identify any early signs of wear. Ensure that a mechanic checks the inner and outer tie rods for looseness or damage.
  • Check Alignment Periodically: Misalignment can exert excess stress on the rack end, leading to wear. Regular wheel alignment checks can help maintain optimal steering performance and prolong component life.
  • Keep the Steering System Lubricated: Ensure that any joints or moving parts within the steering system are lubricated according to the manufacturer’s specifications.
  • Replace Worn Bushings or Joints: If any parts in the assembly are starting to wear out, replace them promptly to prevent further issues.
  • Inspect After Impact: If the vehicle hits a curb or experiences a hard impact, have the steering and suspension system checked, as such events can damage the rack end.

7. Replacement Considerations

When the steering rack end sub-assembly shows signs of wear or damage, replacement may be necessary. Here are a few points to keep in mind:

  • Quality of Replacement Parts: Using high-quality or OEM (original equipment manufacturer) parts is essential for durability and reliable performance.
  • Professional Installation: Replacing the rack end sub-assembly requires precision; an experienced mechanic should handle this to ensure proper alignment and torque specifications.
  • Alignment After Replacement: After replacing the rack end sub-assembly, a wheel alignment is typically necessary to ensure proper handling and even tire wear.
  • Compatibility: Make sure the replacement part is compatible with your specific vehicle model and matches the manufacturerโ€™s specifications.

8. Cost and Long-Term Savings

The cost of replacing a steering rack end sub-assembly can vary depending on the vehicleโ€™s make, model, and whether OEM or aftermarket parts are used. While it may seem like a routine maintenance cost, replacing a faulty rack end can save money in the long run by preventing premature wear on other parts, avoiding frequent alignments, and ensuring even tire wear. Additionally, a functioning steering rack end sub-assembly contributes to a smoother and more responsive driving experience, improving both safety and comfort.

9. Conclusion

The steering rack end sub-assembly is a small yet vital component of the steering system. It ensures that the driverโ€™s inputs are accurately translated to the wheels, promoting safety, handling, and stability. With regular inspections, prompt repairs, and proper alignment, this component can provide years of reliable service. Recognizing the signs of wear and addressing them promptly can prevent further issues in the steering and suspension systems, saving costs and ensuring a smoother, safer driving experience.
