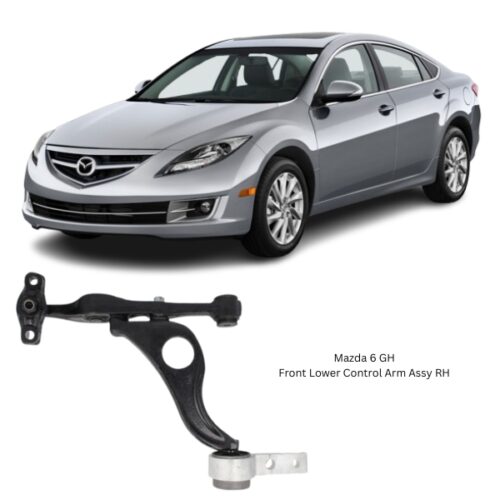

Mazda 6 GH Front Lower Control Arm Assy RH GS1D-34-300

Get Mazda 6 GH Front Lower Control Arm Assy RH GS1D-34-300 in Kenya

The Front Lower Control Arm Assembly RH (Right-Hand) is a fundamental component in the front suspension system of a vehicle. It plays an essential role in maintaining control, balance, and smooth handling by linking the vehicle’s frame or subframe to the front wheel hub. Designed to withstand various driving conditions and mechanical stress, this component is critical to ensuring consistent tire alignment, optimized contact with the road, and an overall comfortable and safe driving experience.

Construction and Design

The Front Lower Control Arm Assembly RH is typically constructed using high-strength steel, forged aluminum, or cast iron, depending on the manufacturer specifications and performance requirements. These materials are selected for their exceptional strength-to-weight ratio, durability, and resistance to stress. Many units are further treated with anti-corrosion coatings or powder coating finishes that protect against environmental damage from water, road salt, and debris.

The assembly consists of a solid main body, rubber or polyurethane bushings, and a ball joint. The bushings are press-fitted to both ends of the arm to allow for a secure and flexible connection to the frame and other suspension components. The ball joint, which connects the arm to the wheel spindle, allows pivoting movement to facilitate smooth and controlled wheel articulation during steering and suspension travel.

Functionality and Role in Suspension System

The Front Lower Control Arm Assembly RH is responsible for enabling vertical wheel movement while keeping the wheel aligned properly with the chassis. It allows the suspension to move up and down as the vehicle drives over bumps, dips, or uneven surfaces, ensuring that the tires stay in contact with the road at all times.

Its primary roles include:

1. Wheel Hub Support: It holds the wheel assembly in place while allowing it to move up and down independently of the vehicle’s body.

2. Alignment Control: It ensures that the wheel maintains the proper camber and caster angles, which are essential for tire wear, steering response, and overall handling.

3. Force Distribution: It absorbs and distributes the loads from braking, accelerating, and cornering, preventing stress from concentrating in one area.

4. Vibration Isolation: The bushings help reduce noise, vibration, and harshness (NVH) transmitted from the road into the cabin.

Key Features

• OEM-Grade Fit and Finish: Designed to meet or exceed original equipment standards, ensuring exact fitment and compatibility with factory suspension geometry.

• Pre-installed Ball Joint and Bushings: Comes as a ready-to-install unit, reducing installation time and eliminating the need for pressing components.

• High-Durability Materials: Engineered to resist deformation, fatigue, and corrosion, even under demanding driving conditions.

• Precision Manufacturing: Built with tight tolerances to maintain wheel alignment and suspension geometry throughout its service life.

Advantages of Using a Quality Front Lower Control Arm RH

A high-quality Front Lower Control Arm Assembly RH offers several benefits:

• Improved Handling: Maintains suspension geometry for precise steering and handling.

• Increased Safety: Reduces the risk of component failure, especially under heavy loads or emergency braking.

• Longer Tire Life: Keeps alignment within spec, helping prevent uneven tire wear.

• Smoother Ride: Reduces road noise and absorbs shocks, leading to enhanced comfort for passengers.

• Extended Suspension Life: Prevents undue wear on other components like tie rods, struts, and stabilizer links.

Common Symptoms of a Failing Lower Control Arm Assembly

Knowing the signs of a worn or damaged control arm assembly is crucial to maintaining safety and performance. Common symptoms include:

• Clunking Noises: Loud clunks when driving over bumps or during sharp turns may indicate worn bushings or a failing ball joint.

• Steering Instability: Excessive play in the steering wheel, poor directional control, or a feeling of looseness can stem from a compromised control arm.

• Uneven Tire Wear: Misalignment due to a failing control arm can cause tires to wear unevenly or prematurely.

• Vehicle Pulling to One Side: If the suspension geometry is affected, the vehicle may drift or pull to one side during driving.

• Visual Damage: Visible cracks, rust, or play in the control arm or its bushings can indicate the need for replacement.

Installation Guidelines

The Front Lower Control Arm Assembly RH should be installed by a qualified technician or mechanic with knowledge of suspension systems. Here are general installation tips:

1. Vehicle Safety First: Ensure the vehicle is lifted and supported securely on jack stands.

2. Remove Wheel and Fasteners: Take off the wheel and detach bolts securing the arm to the frame and spindle.

3. Disconnect Ball Joint: Safely separate the ball joint from the steering knuckle.

4. Install New Assembly: Position the new control arm, ensuring the bushings align with their mounting points and the ball joint fits snugly into the spindle.

5. Torque to Spec: Use a torque wrench to tighten all fasteners to manufacturer specifications.

6. Alignment Check: After installation, perform a wheel alignment to restore correct suspension geometry.

Maintenance and Care

Proper maintenance can significantly extend the life of the Front Lower Control Arm Assembly RH:

• Regular Inspections: Periodically check the bushings and ball joint for signs of cracking, leaking, or excessive movement.

• Avoid Rough Driving: Refrain from driving aggressively over potholes, curbs, or rough terrain to reduce stress on the suspension.

• Clean Periodically: Keeping the underside of the vehicle clean helps prevent corrosion and buildup of debris around suspension parts.

• Timely Replacements: Replace worn components immediately to prevent a domino effect of damage to related parts.

Why Proper Fitment Matters

Installing the correct control arm assembly for the right-hand side ensures the suspension operates with factory-intended geometry. Misfit or poor-quality arms can result in:

• Binding or improper pivoting

• Abnormal suspension movement

• Misalignment issues

• Accelerated wear on tires and suspension parts

Always confirm part compatibility and orientation (RH vs. LH) before installation.
