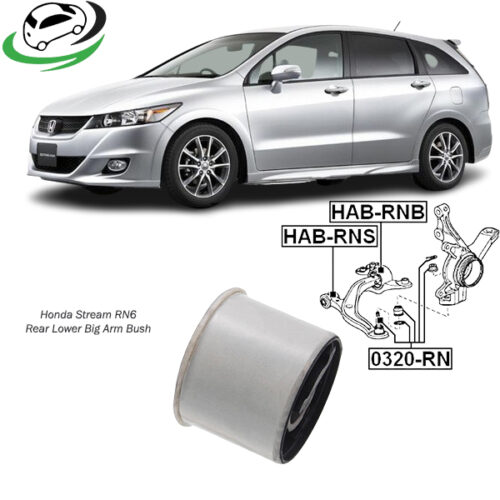

Honda Stream RN6-RN9 Rear Lower Big Arm Bush HAB-RNB

Get Honda Stream RN6-RN9 Rear Lower Big Arm Bush HAB-RNB in Kenya

The Rear Lower Big Arm Bush (often simply referred to as the rear lower control arm bushing) is a key component in a vehicle’s suspension system. Located on the rear lower control arm, this bushing plays a vital role in maintaining stability, handling, and ride comfort. Bushings are an essential part of the suspension system in any car because they serve as a cushion between different parts of the suspension, dampening vibrations and reducing metal-to-metal contact, which extends the life of the components.

Here’s an in-depth look at the rear lower big arm bush, including its design, functionality, benefits, common issues, and maintenance needs.

1. Understanding the Role of the Rear Lower Big Arm Bush

The rear lower big arm bush is a rubber or polyurethane component designed to attach the rear control arm to the vehicle’s chassis. The rear lower control arm is part of a multi-link suspension system that connects the wheel hub and rear axle to the vehicle’s frame. This positioning allows the bushing to absorb shocks and vibrations that come from the road surface, preventing them from being transmitted directly to the frame and ultimately to the passengers.

By stabilizing the rear lower control arm, the big arm bush helps to maintain wheel alignment, which is critical for smooth handling and ride comfort. This is particularly important in turns and over uneven surfaces where the control arm flexes and shifts as it follows the contour of the road.

2. Design and Construction of the Rear Lower Big Arm Bush

The rear lower big arm bush typically consists of an outer metal sleeve, an inner metal sleeve, and a rubber or polyurethane material sandwiched between them. This material gives the bush its elasticity, allowing it to absorb and dissipate energy from road vibrations and impacts.

Types of Materials:

• Rubber: Most original equipment bushings are made from rubber, which provides excellent noise and vibration reduction. Rubber bushings offer a smoother and quieter ride but may wear out faster, especially under heavy loads or aggressive driving conditions.
• Polyurethane: Polyurethane bushings are harder than rubber and provide greater durability, making them a preferred choice for performance and off-road vehicles. While they provide better handling and longevity, they also transmit more vibrations to the cabin, which may reduce ride comfort.

Design Variations: The rear lower big arm bush may vary slightly in design depending on the vehicle make and model, with some bushings featuring additional components like voids or grooves that improve their flexibility and vibration absorption capabilities.

3. Functions of the Rear Lower Big Arm Bush

The main functions of the rear lower big arm bush are:

• Vibration Dampening: The bushing absorbs vibrations from the wheels and suspension, preventing these forces from being transferred to the vehicle’s frame and cabin.
• Enhanced Stability: By anchoring the control arm to the chassis, the bushing provides a stable pivot point for the rear wheels, contributing to overall vehicle stability.
• Improved Handling: A properly functioning rear lower big arm bush helps maintain the alignment of the rear wheels, which is critical for optimal handling and cornering.
• Minimized Wear on Components: By reducing friction between the control arm and the frame, the bushing decreases wear on both parts, prolonging their lifespan.

4. Benefits of a Rear Lower Big Arm Bush in Good Condition

Having a well-maintained rear lower big arm bush offers numerous benefits:

• Improved Ride Comfort: The bushing reduces vibrations that would otherwise cause noise and discomfort, providing a smoother, quieter ride.
• Better Control and Handling: A stable suspension system ensures that the vehicle handles predictably, which is especially important in turns and on uneven roads.
• Reduced Tire Wear: The bushing helps keep the wheels aligned, which reduces uneven tire wear and helps improve tire longevity.
• Protection of Suspension Components: By absorbing impacts and reducing friction, the bushing minimizes wear on the control arms and chassis mounting points.

5. Common Signs of Wear and Failure in a Rear Lower Big Arm Bush

As with most suspension components, the rear lower big arm bush is subject to wear and tear. Here are some signs that indicate the bushing may need replacement:

• Excessive Vibrations: Increased vibrations, especially felt in the rear of the vehicle, may indicate that the rubber in the bushing is deteriorating.
• Clunking or Knocking Sounds: Loose or damaged bushings can cause metal-to-metal contact, resulting in a clunking noise when driving over bumps or making turns.
• Poor Handling or Instability: A worn-out bushing may cause the vehicle to feel loose or unstable, especially when cornering or under heavy loads.
• Uneven Tire Wear: Misalignment due to a failing bushing can cause tires to wear unevenly, particularly on the inner or outer edges.
• Visible Damage: In some cases, a visual inspection may reveal cracks, tears, or other visible signs of deterioration in the bushing.

6. Causes of Rear Lower Big Arm Bush Failure

Several factors contribute to the wear and failure of rear lower big arm bushings:

• Aging and Wear: Over time, rubber and polyurethane degrade due to exposure to heat, cold, and environmental contaminants. This natural wear is accelerated in vehicles that are frequently used for heavy-duty or performance driving.
• Exposure to Oil and Chemicals: Leaks from other components, such as oil or transmission fluid, can cause rubber bushings to degrade and lose elasticity.
• Driving Conditions: Rough terrain, potholes, and aggressive driving can put additional strain on the bushings, leading to faster wear.
• Heavy Loads: Frequently carrying heavy loads or towing can increase the stress on suspension components, causing bushings to wear out more quickly.

7. Maintenance and Replacement of Rear Lower Big Arm Bushings

While bushings are generally maintenance-free, they do require inspection during regular vehicle servicing, especially if the vehicle is older or frequently used in rough conditions. Replacing a rear lower big arm bush typically involves removing the control arm from the vehicle, pressing out the old bushing, and pressing in a new one. This is a task best left to a qualified mechanic, as special tools are often required to press the bushings in and out of the control arm.

Steps to Replace a Rear Lower Big Arm Bush:

1. Lift and Secure the Vehicle: The vehicle is lifted, and the rear wheels are removed to access the control arm.
2. Remove the Control Arm: Bolts securing the control arm to the chassis and the wheel hub are removed, allowing the control arm to be detached.
3. Press Out the Old Bushing: A hydraulic press or bushing removal tool is used to press the old bushing out of the control arm.
4. Install the New Bushing: The new bushing is pressed into the control arm, ensuring proper alignment.
5. Reattach the Control Arm: The control arm is bolted back into place, and the wheels are reinstalled.

After replacement, it’s advisable to get a wheel alignment to ensure that the vehicle handles correctly and that tires wear evenly.

8. Advantages of Upgrading to Performance Bushings

For drivers looking for improved handling, performance bushings made from polyurethane are available. Polyurethane bushings provide greater stiffness, improving handling and stability. However, these bushings may transmit more vibration to the cabin, so they are generally better suited for sports cars or vehicles used for off-roading rather than everyday commuting.

9. Conclusion

The rear lower big arm bush is a small but vital part of a vehicle’s suspension system. Responsible for absorbing vibrations, providing stability, and enhancing control, this bushing directly impacts ride comfort, handling, and the overall health of the suspension system. Regular inspection and timely replacement can prevent more significant issues, such as poor handling, increased tire wear, and damage to the suspension components.

Whether using the vehicle for everyday commuting, long-distance travel, or off-road adventures, keeping the rear lower big arm bush in good condition is essential for a safe, smooth, and enjoyable driving experience.
