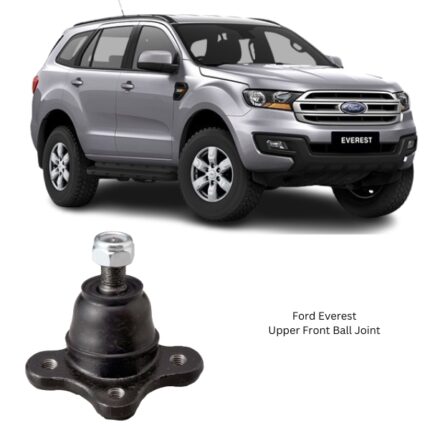

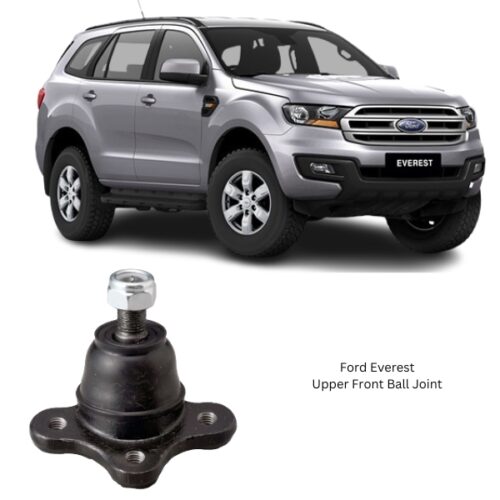

Ford Everest Upper Front Ball Joint UH71-34-540

Get Ford Everest Upper Front Ball Joint UH71-34-540 in Kenya

The Upper Front Ball Joint is a vital pivoting component in a vehicle’s front suspension system. It serves as the rotating and connecting interface between the upper control arm and the steering knuckle. As a ball-and-socket joint, it allows for smooth rotational movement in multiple directions, enabling the suspension to move vertically while the wheels turn horizontally. This dual-axis flexibility is crucial for steering precision, suspension travel, and overall ride quality.

Despite its compact size, the upper front ball joint plays an integral role in ensuring proper wheel alignment, steering control, and load management across the suspension. It must withstand enormous dynamic forces, including bumps, braking torque, lateral loads during turns, and the vertical weight of the vehicle.

Purpose and Function

The primary role of the upper front ball joint is to allow the steering knuckle to pivot while being held firmly in place by the upper control arm. It acts as a pivot point for steering while simultaneously managing suspension movement. The joint enables the wheel to move up and down independently of the chassis while still maintaining the correct angle for proper alignment and turning.

Core Functions:

1. Steering Pivot Point
   Allows the front wheels to turn left or right while supporting vehicle weight transferred through the control arm.

2. Suspension Articulation
   Accommodates vertical movement of the suspension when driving over uneven surfaces.

3. Maintains Camber Angle
   Works with the lower ball joint to keep the wheel at its correct vertical alignment relative to the road.

4. Load Distribution
   Transfers part of the suspension load between the wheel assembly and the upper control arm.

Design and Construction

The Upper Front Ball Joint is built to deliver strength, durability, and precise articulation. Its spherical design permits a wide range of motion, essential for vehicles with independent front suspension systems.

Main Components:

• Ball Stud (Pin)
  A hardened steel shaft with a spherical end that rotates within the joint housing. The threaded end connects to the steering knuckle or control arm.

• Bearing or Socket Housing
  Contains the ball end of the stud, often lined with polymer, metal, or grease to reduce friction and allow smooth movement.

• Boot or Seal
  A rubber or polyurethane cover that protects the internal components from dirt, debris, and moisture. It also helps retain lubrication.

• Mounting Plate or Press-in Housing
  Depending on vehicle design, the ball joint may be bolted or pressed into the control arm. Some are integrated with the control arm, while others are replaceable independently.

Materials:

• Heat-Treated Alloy Steel
  Provides strength and resistance to fatigue or deformation under heavy loads.

• Polymer or Metal Bearings
  Ensure smooth rotation with minimal friction and long service life.

• High-Quality Seals
  Designed to withstand temperature fluctuations and harsh environmental exposure.

• Grease or Lubrication Channel
  Some designs feature a grease fitting (zerk fitting) for maintenance, while others are sealed-for-life.

Types of Upper Front Ball Joints

Ball joints come in various styles depending on application:

• Press-In Type
  Installed into the control arm using a press tool. Common in many modern vehicles.

• Bolt-On Type
  Fastened using bolts and nuts for easier replacement.

• Integrated Ball Joints
  Not serviceable on their own. The entire control arm must be replaced.

• Adjustable Ball Joints
  Allow for camber and caster correction in performance or lifted vehicles.

Performance and Handling Benefits

When functioning properly, the Upper Front Ball Joint offers several performance advantages:

• Improved Steering Control
  Ensures predictable and responsive steering input under all conditions.

• Suspension Stability
  Reduces vibration and movement inconsistencies during braking and turning.

• Accurate Wheel Alignment
  Helps maintain camber and caster angles to prevent tire wear and ensure directional control.

• Comfortable Ride Quality
  Smooths out impacts from potholes and uneven surfaces by allowing vertical suspension travel.

Symptoms of a Failing Upper Front Ball Joint

Ball joints are exposed to constant motion and environmental stress. Over time, wear or contamination can degrade their performance. If left unchecked, a failed ball joint can cause dangerous driving conditions.

Common Signs Include:

1. Clunking or Popping Noises
   Especially when turning or going over bumps, caused by excessive play in the joint.

2. Vague or Loose Steering
   The steering wheel may feel unresponsive or unpredictable due to the ball joint’s looseness.

3. Uneven Tire Wear
   Typically on the inside or outside edge, due to misaligned camber caused by ball joint wear.

4. Vibration in the Front End
   Can be felt in the steering wheel or floorboard at certain speeds.

5. Visual Signs of Damage
   Torn dust boots, rust, or excessive movement during inspection.

6. Vehicle Pulling to One Side
   Can indicate alignment issues often traced back to a worn upper ball joint.

Inspection and Diagnosis

During a routine service or if symptoms appear, the upper front ball joint should be checked by:

• Lifting the Vehicle
  Unloading the suspension and using a pry bar to check for vertical or horizontal play.

• Visual Inspection
  Look for leaking grease, torn boots, or corrosion.

• Wheel Movement Check
  Rocking the wheel vertically can reveal loose upper or lower ball joints.

Installation Overview

Replacement varies based on the design (press-in or bolt-on), but typically includes:

1. Raise and Secure the Vehicle
   Use jack stands and wheel chocks for safety.

2. Remove the Front Wheel
   Gain clear access to the control arm and steering knuckle.

3. Disconnect Control Arm or Knuckle
   Separate the ball joint stud from the knuckle using a ball joint separator.

4. Remove the Old Ball Joint
   Unbolt or press it out of the control arm.

5. Install the New Joint
   Ensure proper alignment and torque specifications. For greaseable joints, apply fresh lubricant.

6. Reassemble and Realign
   Reattach components, torque all fasteners, and have a professional alignment performed.

Maintenance Tips

• Inspect Regularly
  Every 15,000–20,000 km or during routine servicing.

• Keep Seals Intact
  A torn boot allows moisture and debris in, accelerating joint failure.

• Grease When Required
  If equipped with a grease fitting, apply high-quality suspension grease at scheduled intervals.

• Avoid Overloading
  Heavier loads increase stress on ball joints and reduce service life.
