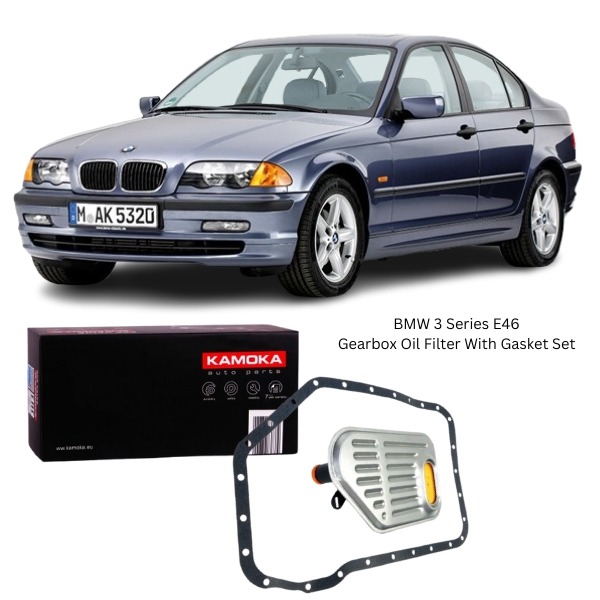

BMW 3 Series E46 Gearbox Oil Filter With Gasket Set F601901

Get BMW 3 Series E46 Gearbox Oil Filter With Gasket Set F601901 in Kenya

The Gearbox Oil Filter with Gasket Set is a critical service component in automatic and some semi-automatic transmission systems, responsible for maintaining the cleanliness, efficiency, and longevity of the transmission fluid system. This assembly includes two main elements:

1. The Gearbox (Transmission) Oil Filter – which captures and removes contaminants from the automatic transmission fluid (ATF),

2. The Gasket Set – which provides a leak-proof seal between the transmission pan and the gearbox housing, ensuring consistent hydraulic pressure and preventing fluid loss.

Together, they serve as essential elements of transmission maintenance, enabling smoother gear shifts, prolonged transmission life, and reduced risk of internal damage.

Functionality of the Gearbox Oil Filter

The gearbox oil filter is designed to trap and retain debris, friction material particles, metal shavings, clutch residue, and contaminants that accumulate in the transmission fluid over time. Unlike the engine oil filter, which filters under higher pressure, the gearbox oil filter typically operates in a low-pressure, high-volume environment.

Key functions include:

• Filtering ATF fluid to keep it clean and free of debris.

• Protecting hydraulic valves and solenoids from clogging or scoring.

• Preventing wear on gears, clutches, and seals.

• Maintaining hydraulic integrity, which is essential for correct gear selection and smooth gear changes.

A clogged or inefficient filter can restrict fluid flow, causing erratic shifting, slippage, overheating, and potential transmission failure.

Construction and Design

The gearbox oil filter is engineered with high-tolerance standards to endure transmission pressures, temperatures, and continuous fluid circulation.

Typical design features include:

• Filtration Media: Usually composed of synthetic fiber, cellulose, or metal mesh, designed to capture particles as small as 25–30 microns. Some filters combine multiple layers for optimal flow and filtering efficiency.

• Filter Housing: Made from stamped steel or durable molded plastic that withstands thermal cycling, fluid exposure, and vibration.

• Pickup Tube or Screen Inlet: Draws fluid from the sump and channels it through the filter media.

• Integrated Baffles: In some designs, baffles inside the filter help direct fluid through the media in a controlled manner.

The exact shape and size of the filter depend on the gearbox model and vehicle make, with some being rectangular, others irregular or compact depending on the design of the transmission housing.

Role of the Gasket Set

The gasket set that accompanies the gearbox oil filter is equally important. It typically includes:

• Transmission Pan Gasket – which sits between the oil pan and the gearbox housing.

• Sealing O-rings or grommets (in some kits) – which ensure airtight fitment of the filter tube or valve body connection.

The gasket is engineered to:

• Prevent transmission fluid leaks, which could otherwise lead to pressure drops and slipping.

• Maintain internal hydraulic pressure, which is vital for consistent gear changes and clutch engagement.

• Absorb minor vibrations and compensate for slight surface irregularities on the mounting flanges.

Depending on the application, gaskets may be made of rubber, cork, nitrile, silicone, or a composite of fiber-reinforced materials.

Applications and Compatibility

The Gearbox Oil Filter with Gasket Set is typically used in:

• Automatic Transmission Systems (AT)

• Continuously Variable Transmissions (CVT) with replaceable filters

• Dual-Clutch Transmissions (DCT) that feature wet clutch systems

• Select semi-automatic and electronically controlled transmissions

The filter must match the gearbox design (e.g., Aisin, ZF, Jatco, or proprietary manufacturer transmission types like Toyota U-series or Nissan RE0F series). Most manufacturers provide exact part numbers and compatibility charts for each vehicle model, engine, and transmission type.

Installation and Maintenance

Replacing the gearbox oil filter and gasket is generally done as part of a scheduled ATF service, usually between 40,000 km to 100,000 km, depending on driving conditions, vehicle manufacturer recommendations, and whether synthetic or conventional ATF is used.

Installation Procedure:

1. Lift and support the vehicle securely.

2. Drain the ATF fluid from the transmission oil pan.

3. Remove the pan, typically held in place with bolts.

4. Remove the old filter, noting its position.

5. Clean the gasket surfaces of both the oil pan and transmission housing.

6. Install the new filter, securing with clips or bolts as needed.

7. Place the new gasket and reinstall the transmission pan.

8. Refill ATF to the correct level with the recommended fluid type.

9. Cycle the transmission through all gears to circulate fluid and remove air pockets.

10. Check for leaks and confirm fluid level.

It’s critical to use new gaskets and filters during every service to ensure sealing integrity and fluid cleanliness.

Common Symptoms of a Faulty Filter or Gasket

Failure to replace or maintain the gearbox oil filter and gasket can result in:

• Delayed or rough gear shifts

• Transmission slipping or surging

• Whining or grinding noises

• Burnt ATF smell or color change (dark/brown)

• Fluid leaks from the transmission oil pan

• Transmission overheat or limp mode activation

Ignoring these symptoms can lead to major gearbox damage and expensive rebuilds or replacements.

Advantages of a Complete Filter + Gasket Kit

Using a Gearbox Oil Filter with Gasket Set—rather than purchasing each component separately—offers several benefits:

• Guaranteed compatibility between parts

• Cost savings compared to individual purchases

• Complete seal integrity, as all gaskets and O-rings are fresh

• Time efficiency during service or repairs

• Prevention of leaks and performance issues due to aged or worn-out seals

For this reason, professionals and DIY enthusiasts alike prefer to replace the transmission filter and gasket as a set rather than individually.

OEM vs Aftermarket Considerations

OEM (Original Equipment Manufacturer) filter and gasket kits are designed to match the transmission specs exactly and typically carry the highest assurance of quality. However, many aftermarket kits from reputable brands also meet or exceed OE standards and may offer:

• Enhanced filtration media

• Upgraded sealing materials (e.g., silicone over nitrile)

• Cost efficiency

• Availability across various makes and models

Popular brands in this space include Fram, Mahle, WIX, Beck/Arnley, ACDelco, and ATP.
