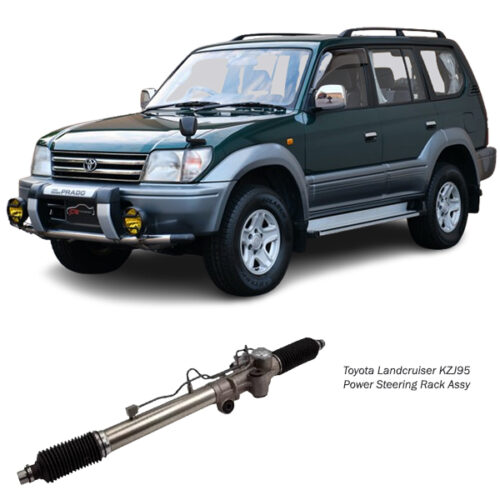

Toyota Land Cruiser Prado KZJ95 Power Steering Rack Assy 44200-60351

Get Toyota Land Cruiser Prado KZJ95 Power Steering Rack Assy 44200-60351 in Kenya

The power steering rack assembly is a pivotal component in modern vehicles, offering drivers smoother steering control with less effort. It plays a significant role in improving the handling, safety, and comfort of a vehicle. This guide provides an in-depth look at the power steering rack assembly, covering its design, functions, benefits, common issues, maintenance, and replacement.

What is a Power Steering Rack Assembly?

The power steering rack assembly is a mechanical system integrated with hydraulic or electric assistance to aid steering. It converts the rotational motion of the steering wheel into the linear motion required to turn the vehicle’s wheels. Simultaneously, it amplifies the driver’s input, reducing the effort needed to maneuver the vehicle, especially at low speeds.

Components of a Power Steering Rack Assembly

1. Steering Rack
   A toothed metal bar connected to the vehicle’s wheels, which moves laterally to steer the vehicle.
2. Pinion Gear
   Attached to the steering shaft, it meshes with the rack’s teeth to convert the rotational motion of the steering wheel into linear motion.
3. Hydraulic Cylinder or Motor
   Depending on the system (hydraulic or electric), this component provides additional force to assist steering.
4. Tie Rods
   Connect the steering rack to the wheel assemblies, transferring motion directly to the wheels.
5. Seals and Bushings
   Prevent fluid leakage in hydraulic systems and reduce friction between moving parts.
6. Hoses and Lines (Hydraulic Systems)
   Carry hydraulic fluid from the pump to the steering rack.
7. Electronic Control Unit (ECU, in Electric Systems)
   Manages steering assistance based on inputs like speed and driver effort.

How Does a Power Steering Rack Assembly Work?

1. Input from the Steering Wheel
   When the driver turns the steering wheel, the steering shaft rotates the pinion gear.
2. Motion Conversion
   The pinion gear engages the teeth of the steering rack, converting rotational motion into linear motion.
3. Assistance Mechanism
   • In hydraulic power steering, fluid pressure from a pump assists the movement of the rack.
   • In electric power steering, an electric motor provides additional force to the rack.
4. Wheel Movement
   The rack pushes or pulls the tie rods, turning the wheels in the desired direction.

Types of Power Steering Rack Assemblies

1. Hydraulic Power Steering (HPS)
   Utilizes hydraulic fluid pressure to assist steering. It provides smooth operation but requires regular maintenance.
2. Electric Power Steering (EPS)
   Employs an electric motor for steering assistance. It is energy-efficient, requires less maintenance, and integrates easily with advanced driver-assistance systems (ADAS).
3. Electro-Hydraulic Power Steering (EHPS)
   Combines hydraulic and electric systems, using an electric motor to drive the hydraulic pump.

Functions of a Power Steering Rack Assembly

1. Facilitate Smooth Steering
   Reduces the effort required to turn the steering wheel, especially at low speeds or when parking.
2. Enhance Vehicle Handling
   Provides precision control, ensuring accurate steering and better maneuverability.
3. Dampen Road Shocks
   Absorbs impacts from uneven road surfaces, reducing vibrations transmitted to the driver.
4. Improve Safety
   Enables quick and effortless steering responses in critical situations.

Benefits of a Power Steering Rack Assembly

1. Ease of Maneuvering
   Steering assistance makes driving less physically demanding, particularly in urban areas or tight spaces.
2. Enhanced Comfort
   Dampens vibrations and shocks, contributing to a smoother driving experience.
3. Improved Fuel Efficiency (with EPS)
   Electric systems consume less energy compared to hydraulic systems, as they do not rely on an engine-driven pump.
4. Customization Options
   Advanced systems like EPS allow for adjustable steering sensitivity to suit different driving styles or conditions.
5. Integration with Modern Technologies
   EPS systems work seamlessly with features like lane-keeping assist and automatic parking.

Signs of a Faulty Power Steering Rack Assembly

1. Difficulty Steering
   Increased effort required to turn the wheel, especially at low speeds, may indicate a problem.
2. Steering Wheel Vibrations
   Excessive vibrations can result from worn-out components or misalignment.
3. Fluid Leaks (Hydraulic Systems)
   Puddles of steering fluid under the car or a noticeable drop in fluid levels are warning signs.
4. Unusual Noises
   Grinding or whining sounds while steering may indicate internal damage.
5. Steering Wheel Misalignment
   A crooked steering wheel while driving straight suggests an issue with the rack or tie rods.
6. Uneven Tire Wear
   Faulty steering components can lead to improper alignment, causing uneven wear on tires.

Maintenance Tips for a Power Steering Rack Assembly

1. Check Fluid Levels (for HPS)
   Regularly inspect and top up hydraulic fluid to prevent pump strain and system failure.
2. Inspect for Leaks
   Look for leaks in hoses, seals, and connections, and address them promptly.
3. Keep Components Clean
   Dirt and debris can cause wear and tear on moving parts. Clean the assembly during regular maintenance.
4. Align the Wheels
   Misaligned wheels put unnecessary stress on the steering rack. Perform periodic wheel alignments.
5. Monitor Steering Performance
   Pay attention to changes in steering effort or unusual noises, as these could signal early issues.
6. Use Quality Components
   When replacing parts, choose high-quality or OEM components to ensure longevity and reliability.

Replacement of a Power Steering Rack Assembly

1. Symptoms Indicating Replacement
   • Persistent fluid leaks
   • Excessive play in the steering wheel
   • Unresponsiveness or erratic steering behavior
2. Replacement Process
   • Raise the Vehicle: Lift the vehicle to access the steering rack.
   • Remove the Old Rack: Disconnect tie rods, hoses (in hydraulic systems), and mounting bolts.
   • Install the New Rack: Position the replacement assembly, connect the tie rods and hoses, and secure the mounting bolts.
   • Bleed the System (HPS): Remove air from the hydraulic system to ensure proper operation.
   • Test Drive: Check steering performance and alignment after installation.
3. Professional Assistance
   Replacing a power steering rack is complex and often requires specialized tools. It’s advisable to have the work done by a certified mechanic.

Common Issues with Power Steering Rack Assemblies

1. Fluid Contamination
   Dirt or debris in hydraulic fluid can damage seals and other components.
2. Seal Wear and Leakage
   Aging seals may crack, leading to fluid leaks in hydraulic systems.
3. Motor Failure (EPS)
   The electric motor in EPS systems can fail, resulting in loss of steering assistance.
4. Corrosion
   Exposure to moisture can cause rust on metal components, weakening the assembly over time.

Environmental Considerations

Proper disposal of old hydraulic fluid and steering components is crucial to minimize environmental impact. Many auto shops and recycling centers accept used fluids and parts for safe processing.

Conclusion

The power steering rack assembly is a cornerstone of modern vehicle technology, ensuring smoother, safer, and more comfortable driving. Regular maintenance, timely replacement of worn parts, and using high-quality components are key to keeping this vital system in optimal condition. Whether you’re an everyday driver or an automotive enthusiast, understanding your power steering rack assembly can significantly enhance your driving experience and ensure your vehicle’s longevity.
